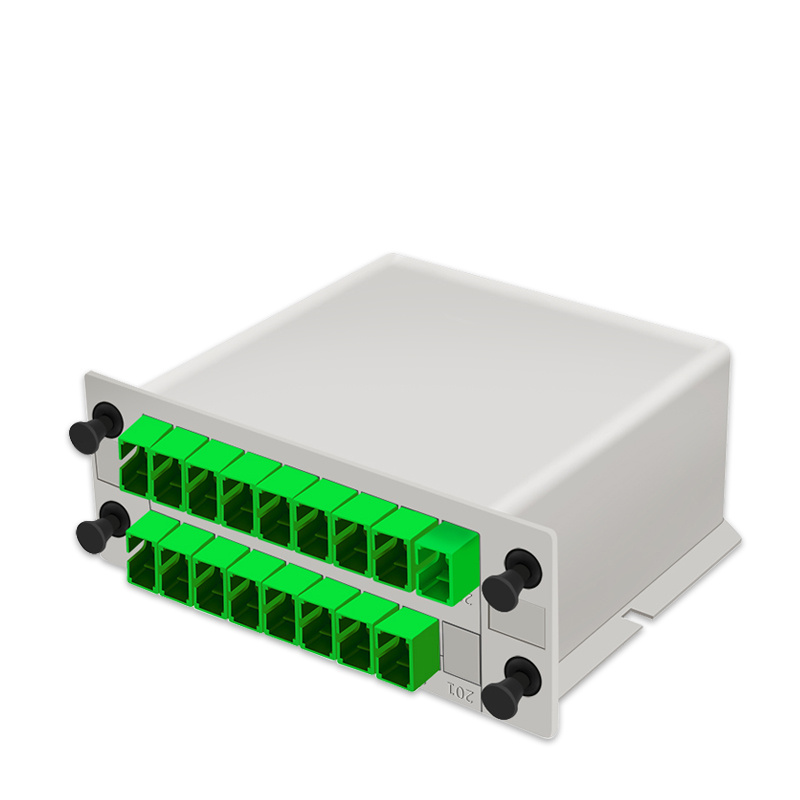

Fiber optic PLC Splitter 1*16 SC/APC Card Inserting box splitter
The PLC Splitters is branching devices that is used to distribute optical signals to multiple locations for processing. In optical networks, it is often necessary to split an optical signal into many identical signals, or to combine many signals into a single signal.
Application
Optical Signal Distribution
Data Communications
Lan and CATV System
FTTX Deployment
FTTH Network
Passive Optical Networks (PON)
Measuring System and Laser System
DWDM and CWDM Systems
Product Model | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 |
Wavelength | 1260-1650nm | ||||||||||
Insertion loss(db) | 3.6 | 7.2 | 10.2 | 13.5 | 16.2 | 20.5 | 3.8 | 7.5 | 10.7 | 14 | 17 |
Uniformity(db) | 0.4 | 0.6 | 0.8 | 1 | 1.2 | 1.8 | 0.6 | 1 | 1.2 | 1.5 | 1.8 |
Directivity(db) | 55 | ||||||||||
Reflection loss(db) | 55 | ||||||||||
Operating temperature | -40~85℃ |
