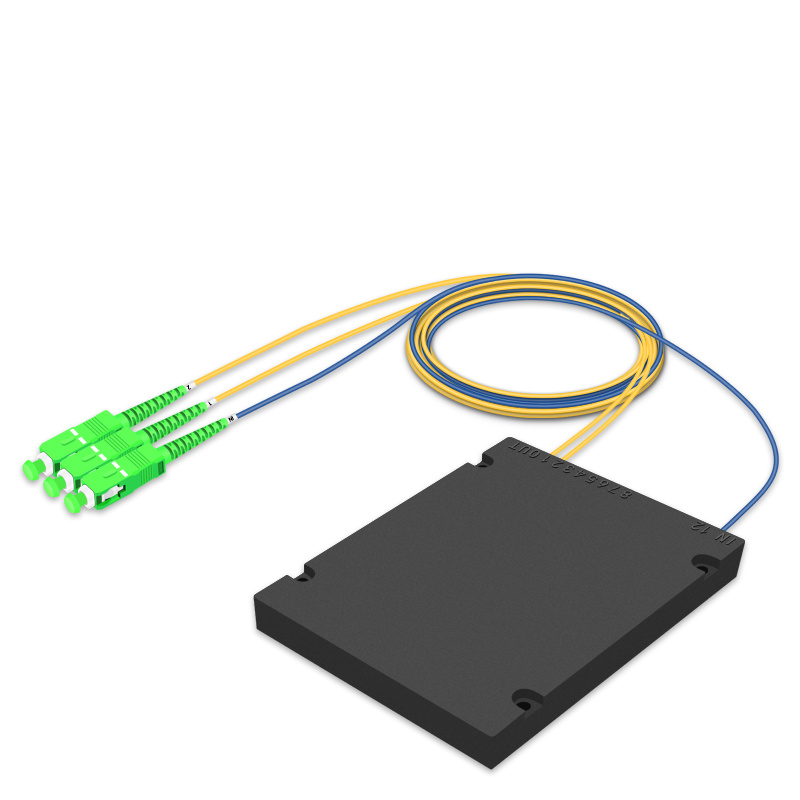

FBT splitter 1*2 SC-APC Fiber Optic Box splitter 1 in 2
FBT splitter
Fused Biconic Taper (FBT) splitter, also be called fiber coupler, based on the traditional technology, it is to bundle together two or more optical fibers, and then pull the cone machine melt stretching, and real-time monitoring the change of the ratio, spectral ratio requirements after melt stretching, one side retain a single fiber (the rest of the cut) as input, the other end is a multi-channel output.
As one of the key components for GPON FTTx networks, optical splitters can be placed in the Central Office or in one of the distribution points (outdoor or indoor) because the FBT splitters are highly stable for multiport optical signal splitting with low insertion loss. FBT couplers are designed for power splitting and tapping in telecommunication equipment, CATV network, and test equipment.
|
Item |
Unit |
Specification | ||||||||
| Standard | Wavelength Flattened | Broadband | ||||||||
| Center Wavelength | nm | 1310 or 1550 | 1310 or 1550 | 1310 or 1550 | ||||||
| Bandwidth | nm | ±20 | ±40 | ±40 | ||||||
| Star Structure | 4×4 | 8×8 | 16×16 | 4×4 | 8×8 | 16×16 | 4×4 | 8×8 | 16×16 | |
| Tree Structure | 1×2 | 1×4 | 1×8 | 1×16 | 1×4 | 1×8 | 1×16 | 1×4 | 1×8 | 1×16 |
| Typical Insertion Loss | 4.1 | 6.3 | 9.4 | 12.6 | 6.3 | 9.4 | 12.6 | 6.3 | 9.4 | 12.6 |
| Max. Insertion Loss | dB | 7.1 | 10.6 | 14.3 | 7.6 | 11.5 | 14.5 | 7.7 | 11.7 | 15.5 |
| Uniformity | dB | 0.7 | 1.0 | 1.3 | 1.5 | 2.2 | 3.0 | 1.9 | 2.8 | 3.7 |
| Directivity | dB | 60 | ||||||||
| Operation Temperature | -40 ~ +75 | |||||||||
| Storage Temperature | -40 ~ +85 | |||||||||
