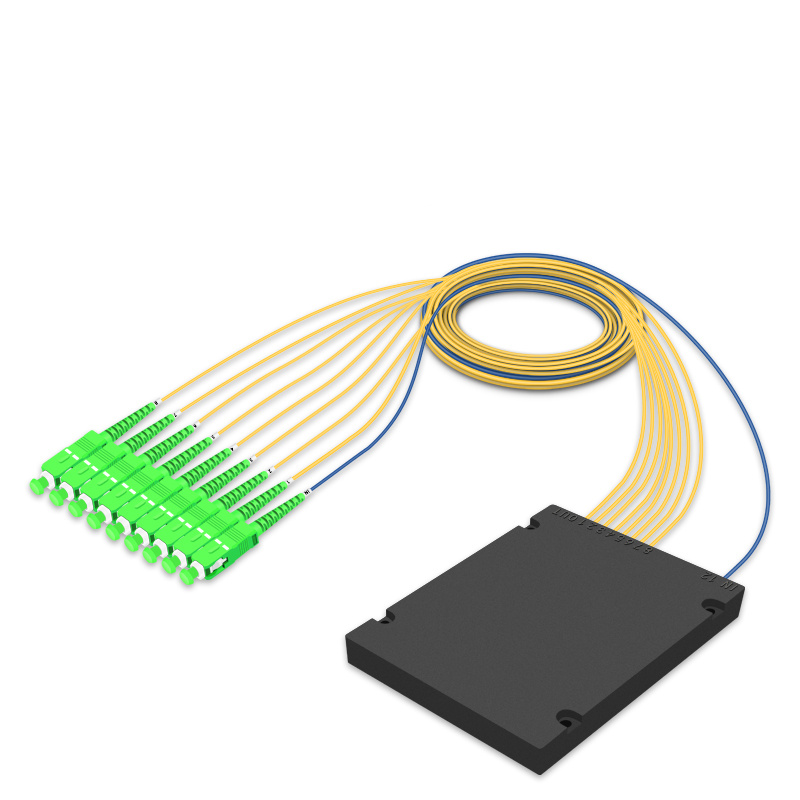

FBT splitter 1*8 SC-APC Fiber optic Box splitter 1 in 8
Fused Biconic Taper (FBT) splitter, also be called fiber coupler, based on the traditional technology, it is to bundle together two or more optical fibers, and then pull the cone machine melt stretching, and real-time monitoring the change of the ratio, spectral ratio requirements after melt stretching, one side retain a single fiber (the rest of the cut) as input, the other end is a multi-channel output.
As one of the key components for GPON FTTx networks, optical splitters can be placed in the Central Office or in one of the distribution points (outdoor or indoor) because the FBT splitters are highly stable for multiport optical signal splitting with low insertion loss. FBT couplers are designed for power splitting and tapping in telecommunication equipment, CATV network, and test equipment.
| Parameters | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 |
| Operating Wavelength（nm） | 1260~1650 | ||||
| Fiber Type | G657A or customer specified | ||||
| Insertion Loss (dB)(P/S Grade) | 7.1/7.4 | 7.1/7.4 | 10.2/10.5 | 13.5/13.7 | 16.2/16.9 |
| Loss Uniformit（dB） | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 |
| Polarization Dependent Loss（dB） | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 |
| Return Loss(dB)（P/S Grade） | 55 | 55 | 55 | 55 | 55 |
| Directivity（dB） | 55 | 55 | 55 | 55 | 55 |
| Wavelength Dependent Loss（dB） | 1 | 1 | 1 | 1 | 1 |
| Temperature Stability （-40~85℃）（dB） | 0.5 | 0.5 | 0.6 | 0.8 | 0.8 |
| Operating Temperature(℃) | -40~+85 | ||||
| Storage Temperature(℃) | -40~+85 | ||||
| Device Dimension（mm） | 100*80*10 | 120*80*10 | 141*115*18 | ||
