FEATURES:
- Switching power supply for installation flexibility and precise voltage regulation
- Two cooling fans for long life performance
- 42dBmV chassis output level, no need extra combiner
- SAW (surface acoustic wave) filtering on IF for superior in band C/N
- Front panel access controls enable easy setup
SPECIFICATION:
Chassis | ||
RF | Frequency Range | 45 ~ 860 MHz |

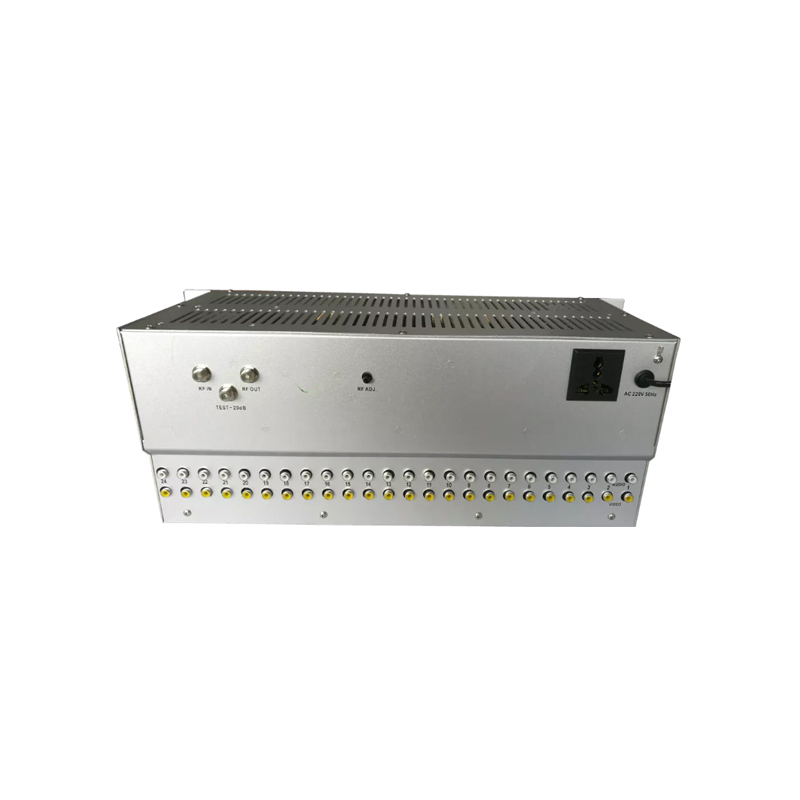

Output Connector | F Connector | |
Output Level | 105 dBµV (Adj.) | |
Test Point | -20 dB | |
Isolation Port to Port | ≥ 35 dB | |
Return Loss | ≥ 12 dB | |
Gain | + 8 dB | |

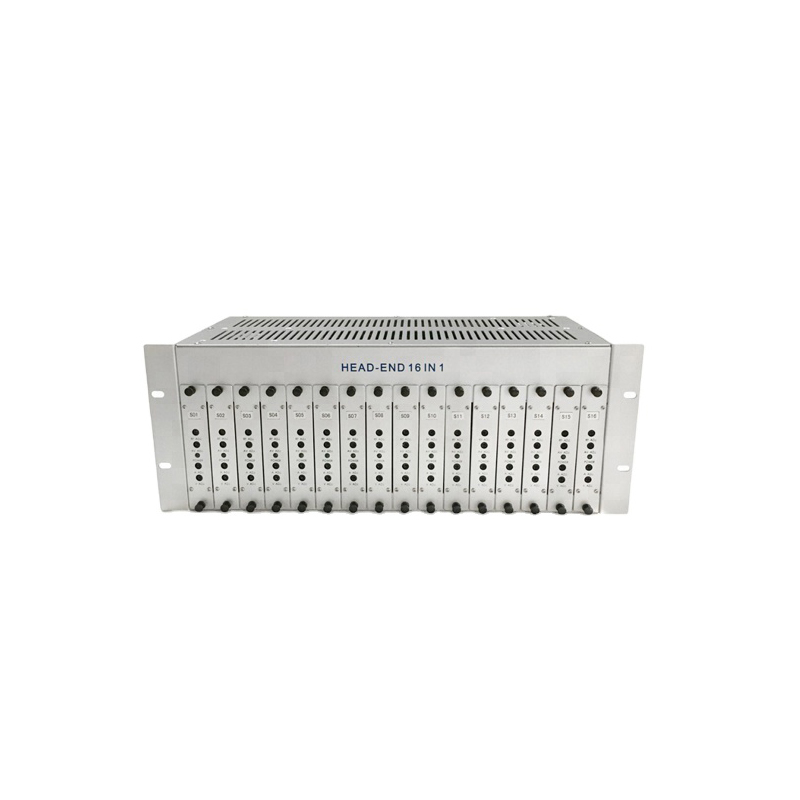

GENERAL | Modulator Capacity | 16 |
Input Voltage Range | 110V or 220V | |
Cooling Fan | 2 | |
Consumption | 57W (Fully Loaded) | |
Dimension | 42 * 17 *20 cm | |
Net Weight | 10 KG (Fully Loaded) | |
Shipping Weight | 3.7 KG (Chassis Only) | |
11 KG ( Fully Loaded) | ||

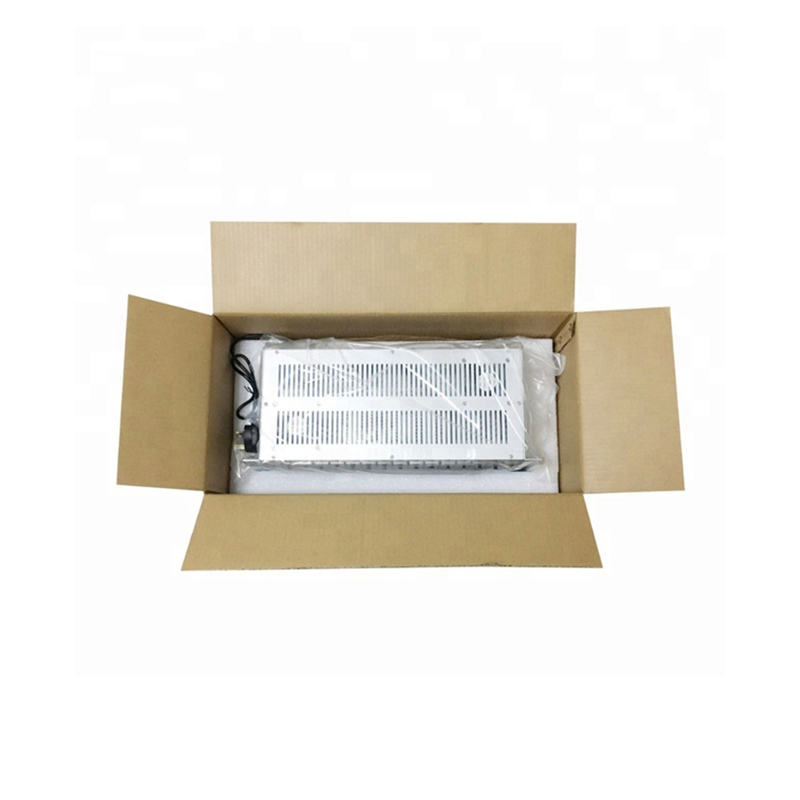

Carton Size | 53 * 30 * 24 cm | |

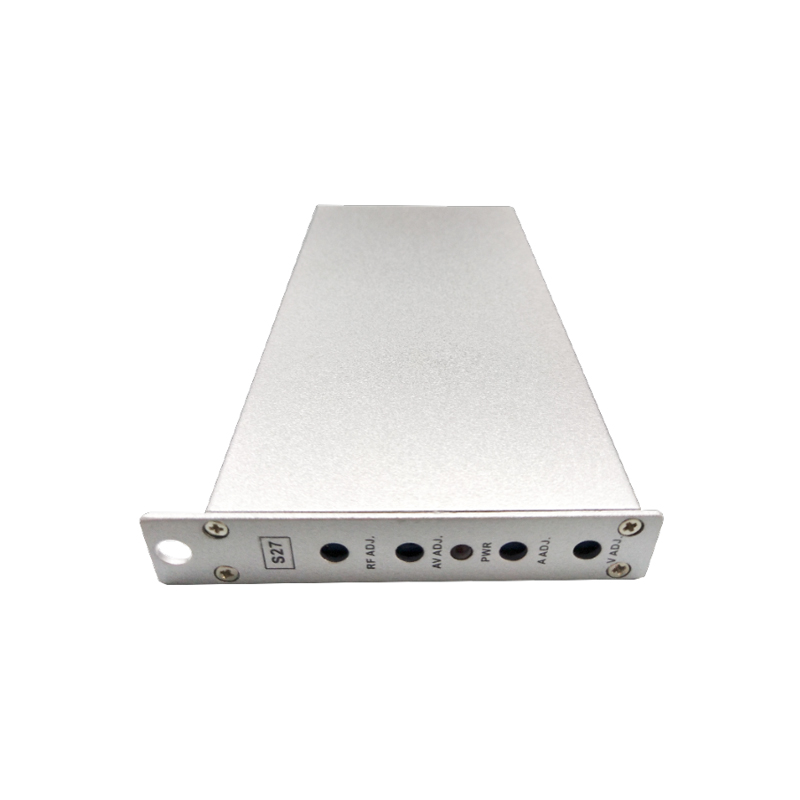

Modulator Card | ||
RF | Output Frequency | 45 ~ 860 MHz |
Output Level | 113 dBµV (Adj.) | |
Output Connector | F Connector | |
A / V Ratio | -11 ~ -18 dB (Adj.) | |
Frequency Stability | ±5KHz | |
Video Input Level | 0.6-1.5Vp-p (87.5% Modulation) | |
Video Input Connector | Yellow RCA | |
Audio Input Level | 1Vp-p (25KHz Dev.) | |
Audio Input Connector | White RCA | |
GENERAL | Voltage | DC 5V |
