Features

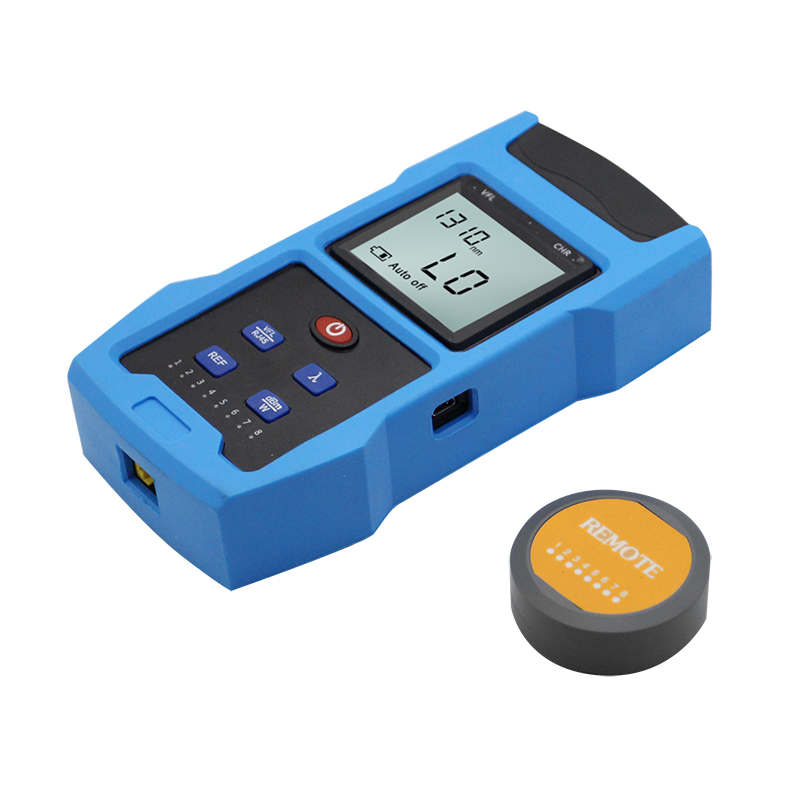

* Accurately test whether a single network cable transmits signals normally
* Self Calibration
* Set the Auto Off
* Wavelength Memory function after turn off the tester
* High Accuracy, high ,High sensitivity, high linearity
* Stable VFL Output

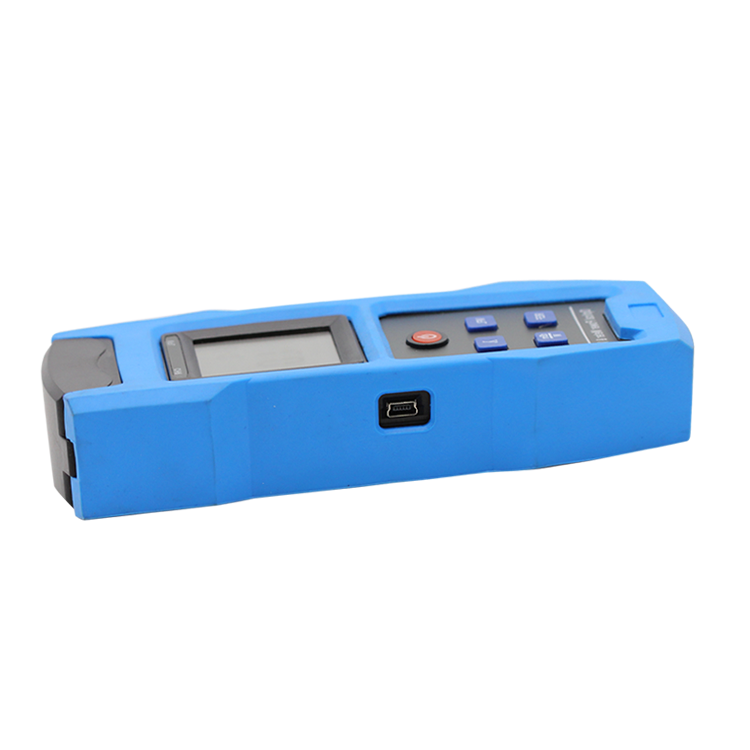

* USB Charge port

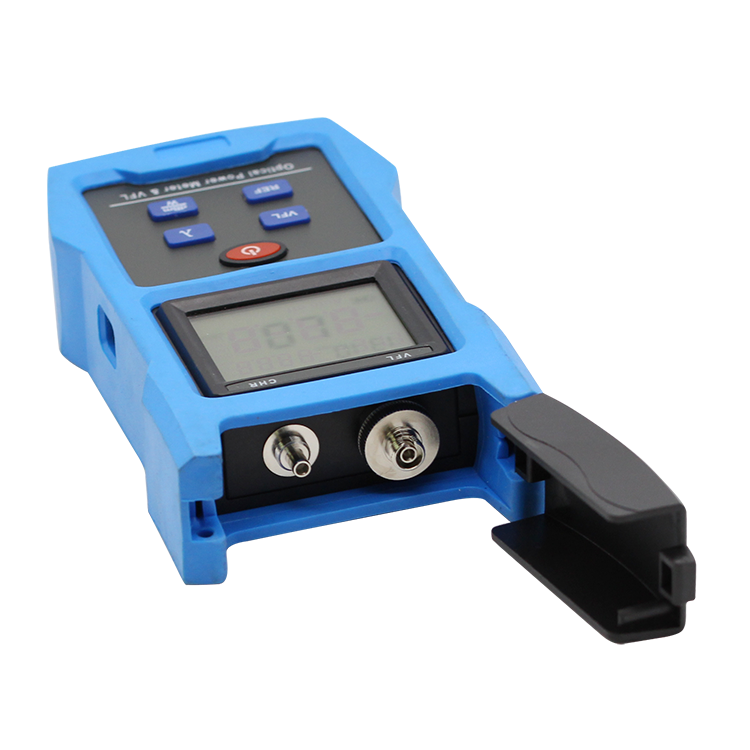

* FC,SC Connector
* 18650Li-ion Battery
* Lower power consumption design, long standby time
* Rubber Out shell, increased the protective properties for field work
Application
Optical Power Meter
|
Detector Type
|
InGaAs
|
Optical Connector
|
SC/FC & 2.5mm Universal
|
|
Calibrated Wavelengths
|
850,1300,1310,1490,1550,1625 nm
|
|
Measurement Range
|
+6 ~ -70 dBm
|
|
Accuracy
|
±0.2 dB
|
|
Power Measurement Linearity
|
±0.1 dB
|
|
Display Resolution
|
±0.01 dB
|
|
Power Display Units
|
dBm, mW, uW
|
|
Visual Fault Locator
|
Output power
|
1mw/10MW/20mw/30mw
|
Range
|
12-km@SM
|
|
Connector
|
2.5mm Universal
|
|
Laser safety rating
|
Class 2
|
|
Wavelength
|
650nm±20nm
|
|
Output modes
|
Continuous (CW),2 Hz pulsed
|
|
Reverse battery protection
|
Yes
|
|
Others
|
Power Supply
|
18650 Li-con battery
|
Auto Off
|
10 minutes
|
|
Working time
|
>200hours(only OPM Work)
≥50hours(10mWVFL & OPM Work meanwhile) |
|
Working Temperature
|
-10~+45
|
|
Weight
|
250g
|
|
Dimensions
|
160*75*10mm
|
Models
Optical Power Meter | -70~+10dBm |
-50~+26dBm | |
Fault Locator | BS263-1: 1mw VFL(1-5KM) |
BS263-10: 10mw VFL(8-10KM) | |
BS263-20: 20mw VFL(12-15KM) | |
BS263-30: 30mw VFL(15-25KM) |
