EG8145V – ONT GPON client terminal for home network

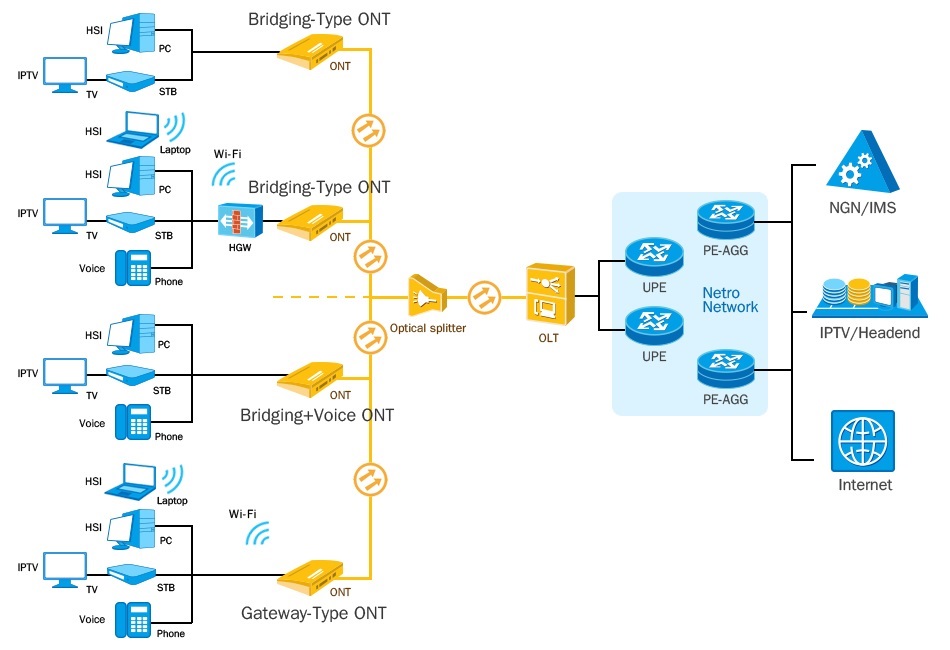

EG8145V is a GPON (ONT – Optical Network Terminal) designed as an ideal device for home gateway units (HGU – Home Gateway Unit) to be used in FTTH networks. This gateway supports Layer 3 functionality to facilitate the creation of a smart home network. It also provides the user with access to all Triple-play services (Internet, VoIP telephony, IPTV). EG8145V has been equipped with 4 Gigabit Ethernet ports, 1 telephone port(1x POTS) and 2x USB ports. HS 8145V has been equipped with built-in wireless Wi-Fi radio operating in 2.4 and 5 GHz bands simultaneously(dual band). It supports modern AC standard and 2×2 MIMO dualchain technology, the maximum theoretical transmission speed is up to 300 Mbps in 2.4 GHz band and 867 Mbps in 5 GHz band. The device has two external antennas, each with 2 dBi gain. The set includes DC 12V 1.5A adapter with European plug.
Main features – EG8145V5 GPON ONT terminal
*Terminal GPON ONT class B+
*Fiber optic connector port GPON SC/ UPC
*4 RJ-45 10/100/1000 Mbps Gigabit Ethernet LAN ports
*2 x USB
*1 POTS phone port (1x POTS RJ11)
*Dual-band 2.4 GHz and 5 GHz AC Wi-Fi transmission
*Supports modern ac standard and 2×2 mimo dualchain technology
*Maximum theoretical throughput is up to 300 Mbps in the 2.4 GHz band and 867 Mbps in the 5 GHz band
SPECIFICATION
| Technical data | |
| Model | EchoLife EG8145V5 |
| Type | Routing |
| Dimensions (H x W x D) | 173 mm x 120 mm x 30 mm (without antenna and pads) |
| Operating temperature | 0°C to 40°C |
| Humidity during operation | 5% RH to 95% RH (non-condensing) |
| Power supply input | 100V to 240V AC, 50 Hz/60 Hz |
| Power supply | 11V to 14V DC, 2A |
| Ports on the network side | GPON |
| User-side ports | 1 POTS + 4 GE + Wi-Fi + USB |

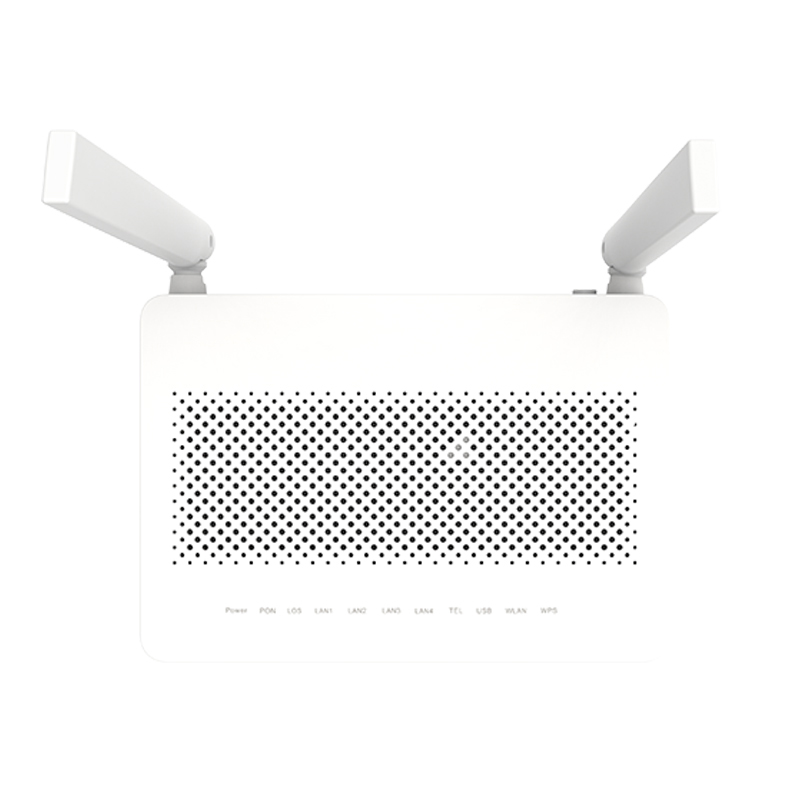

| Indicators | POWER, PON, LOS, LAN1, LAN2, LAN3, LAN4, TEL, USB, WLAN and WPS |
| Properties of interfaces | |
| GPON port | Class B+ Receive sensitivity: -27 dBm Max optical power: -8 dBm Wavelength: upstream 1310nm / downstream 1490nm WBF (G.984.5) Mapping between GEM Port and TCONT Authentication by SN or password (G.984.3 standard) Bidirectional FEC SR-DBA and NSR-DBA Type B |
| Ethernet Ports | Ethernet port-based VLAN tagging and de-tagging 1:1 VLAN, N:1 VLAN, or VLAN transparent QinQ VLAN MAC address limit MAC address learning Auto-negotiation: 10/100/1000 Mbps |
| POTS port | Mass. REN: 4 Encoding / Decoding: G.711A/μ, G.729a/b, G.722 Fax mode T.30 / T.38 / G.711 DTMF Emergency calls |
| USB port | USB 2.0 FTP network drive SAMBA file sharing DLNA function |
| WLAN | IEEE 802.11 b/g/n (2.4 GHz) IEEE 802.11 a/n/ac (5 GHz) 2×2 MIMO in both bands Antenna energy gain: 5 dBi WMM WPS Multiple SSID 2.4 and 5 GHz simultaneously Max theoretical throughput: 300 Mbps in 2.4 GHz band, 867 Mbps in 5 GHz band |
| Software functions | |
| Smart connection | Smart Wi-Fi coverage Auto negotiation SIP / H.248 Parental control Any service available on any port L2/L3 (IPv4) forwarding |
| Other functions | WiFi shutdown schedule Portal / 802.1x authentication SoftGRE sharing |
| Smart O&M | IPTV quality diagnostics eMDI ONT rogue detection and isolation from OLT Call emulation, circuit test, loop-line test PPPoE and DHCP simulation/testing WLAN emulation |
| Layer3 functions | PPPoE / static IP / DHCP NAT / NAPT Port forwaring ALG, UPnP DDNS, DNS server, DNS client IPv4 / IPv6 dual stack DS-Lite IPv6 SPI Static / Default Tracy |
| Multicast | IGMP v2 / v3 proxy / snooping MLD v1 / v2 snooping |
| QoS | Ethernet port limiting 802.1p Prioritization SP / WRR / SP+WRR Packet Limiting (broadcast) |
| O&M | OMCI / Web UI / TR-069 Software Backup |
