Product name | Fiber Optic Distribution Box | IP Rate | IP65 |
Product Model | FDB-36K | Product Size
Inner Box Size |
340*270*115 mm
370*300*120 mm |
Ports | 3 inlet port φ15mm
32+1 out port φ5mm φ11.5mm |
Packing Quantity | 10 pcs / carton
66*38*70cm 20kg |
Compatible with | 1:32 cassette splitter or
36 core adapter pigtail |
Material | ABS |
Installation Type | wall / pole-mounted | Net weight | 1.85kg |

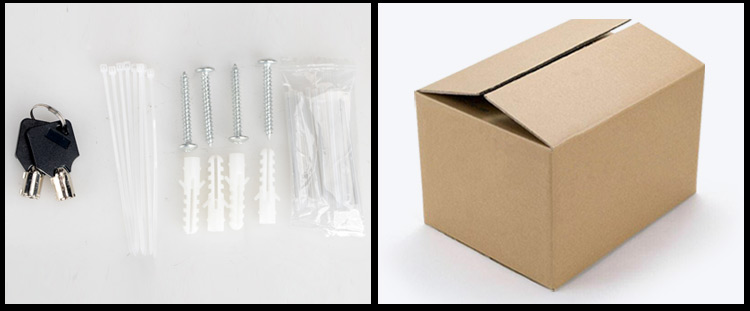

Accessories | 1. Wall mounting kits : 4 pieces 2. Screws : 4 pieces 3. Cable tie: 8 pieces 4. Heat shrink protective sleeves: 36 pieces 5. Key :1 piece |
