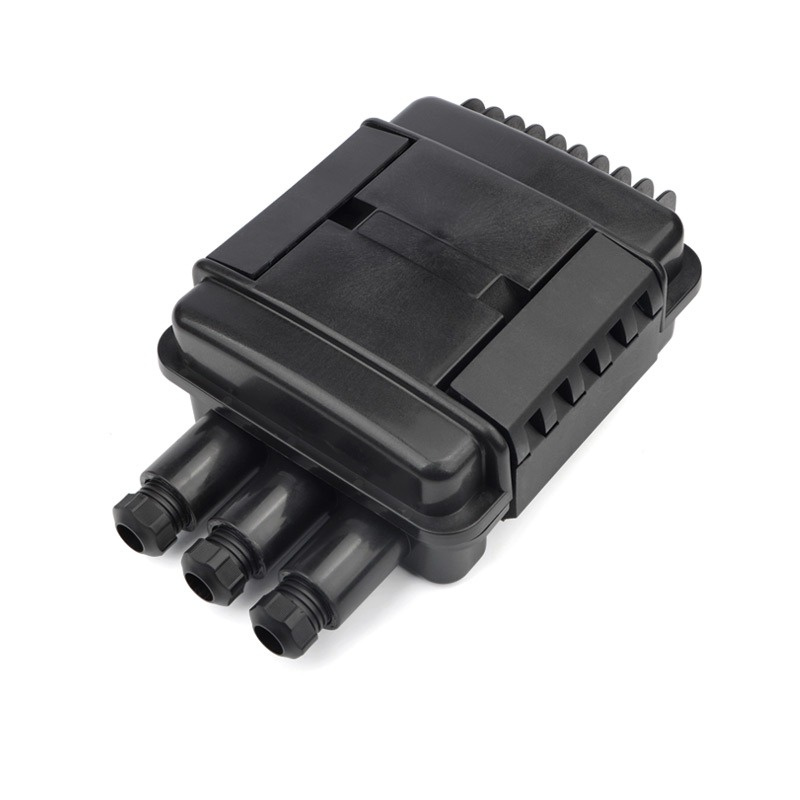

Product name | Fiber Splice Box | IP Rate | IP65 |
Product Model | FCBD-24F | Packing Size
Inner Box Size |

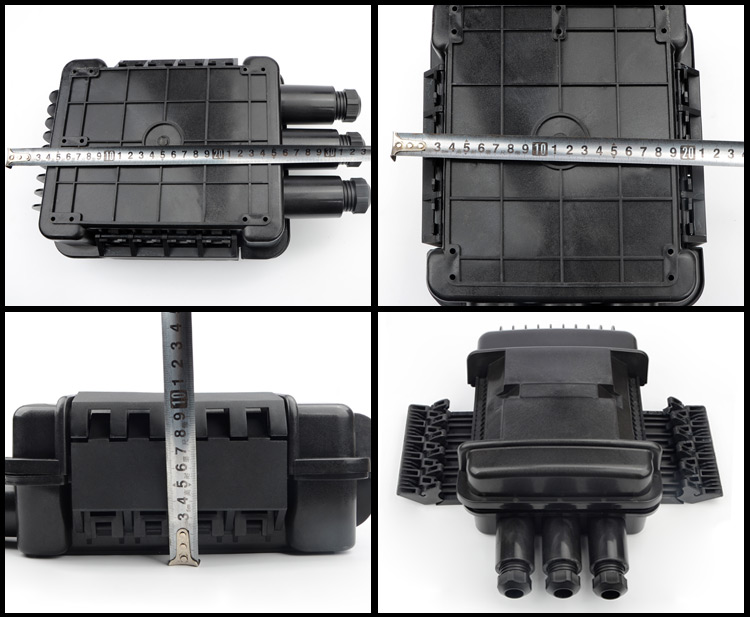

325*210*105 mm
330*220*120 mm |
Ports | 2 port or 3 port | Packing Quantity | 6 pcs / carton
45*35*50cm 11.5 |
Max Core | 12F/tray, max capacity 24F(2 trays) | Material | Polymer Plastic+Fiber |
Installation Type | Horizontal | G. weight | 1.7kg |

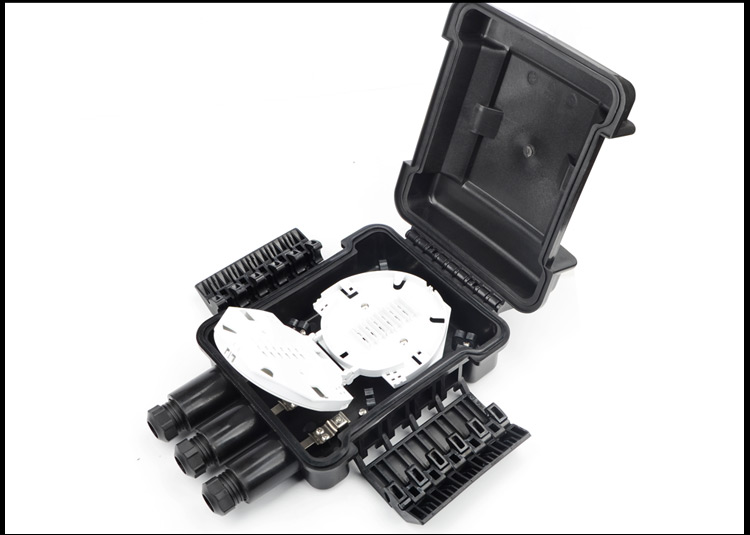

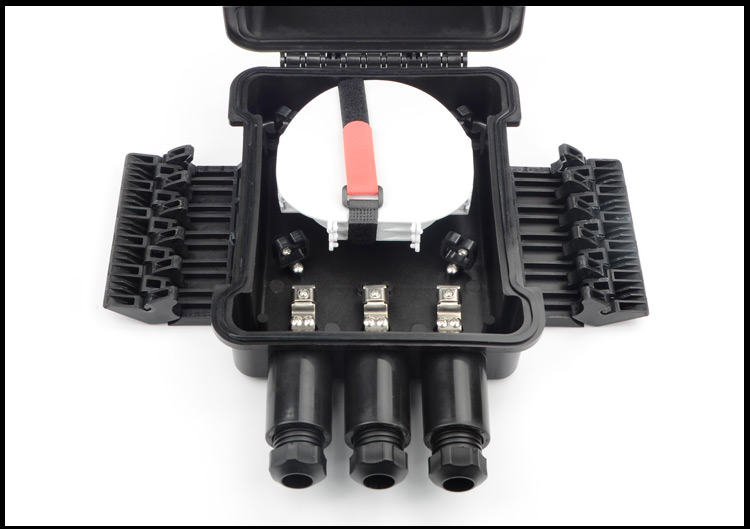

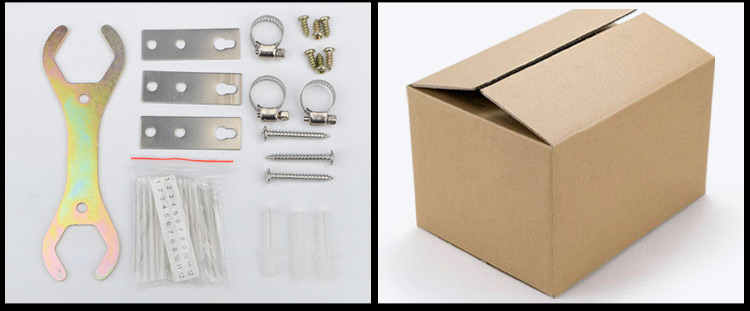

Key Features: | 1.Suitable for ordinary fiber and ribbon fiber. 2.Fully kitted with all parts for convenient operation. 3.Overlap structure in splicing tray for easy installation. 4.Fiber-bending radium guaranteed more than 40mm. 5.Easy to install and re-entry with a common can wrench. 6.Excellent Anti-removable Screw Opening Type to protect fiber and splice ensuring durability. 7.Stand up to severe condition of moisture,vibration and extreme temperatures. |
