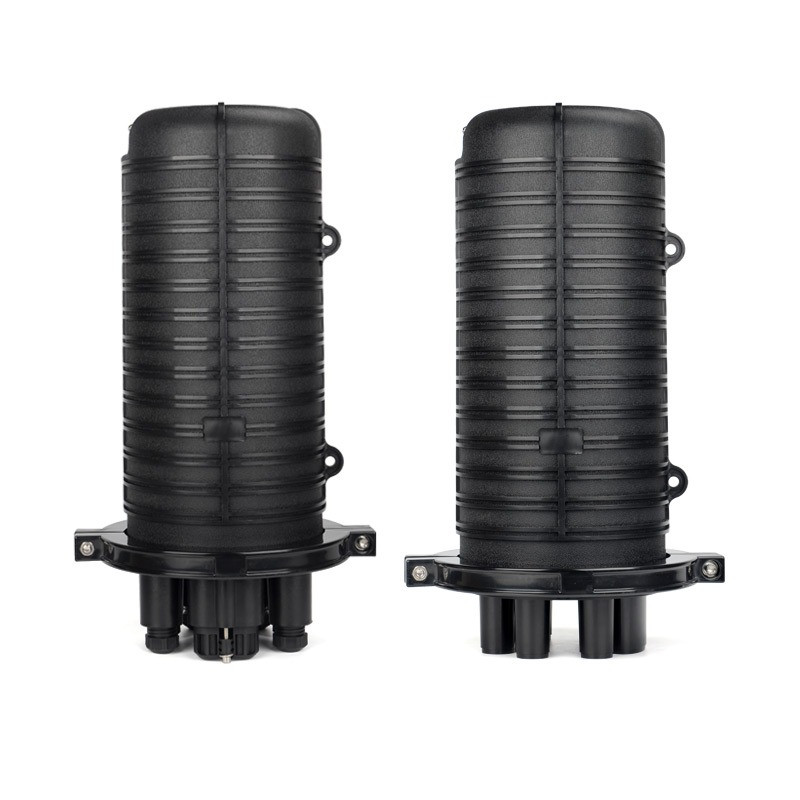

Product name | Fiber Optic Joint Closure | IP Rate | IP65 |
Product Model | FCBF288B | Packing Size
Inner Box Size |

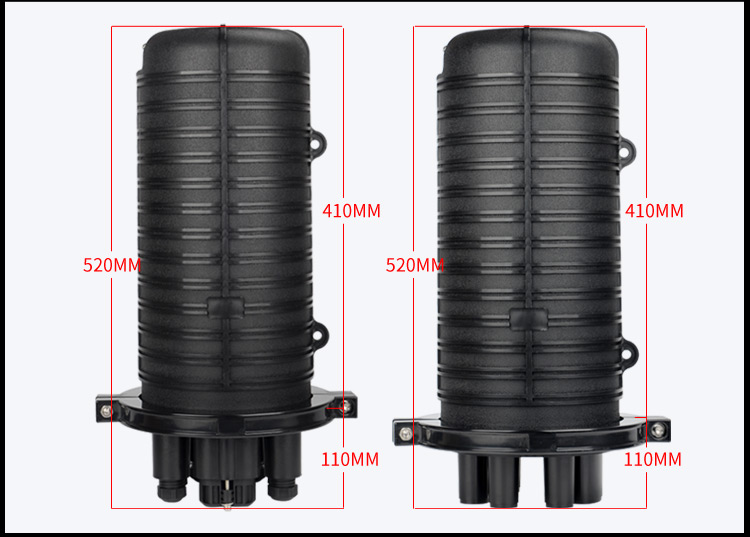

520*φ230mm
310*320*550 mm |
Ports | 1 inlet port 85*45mm
6 out port φ30mm |

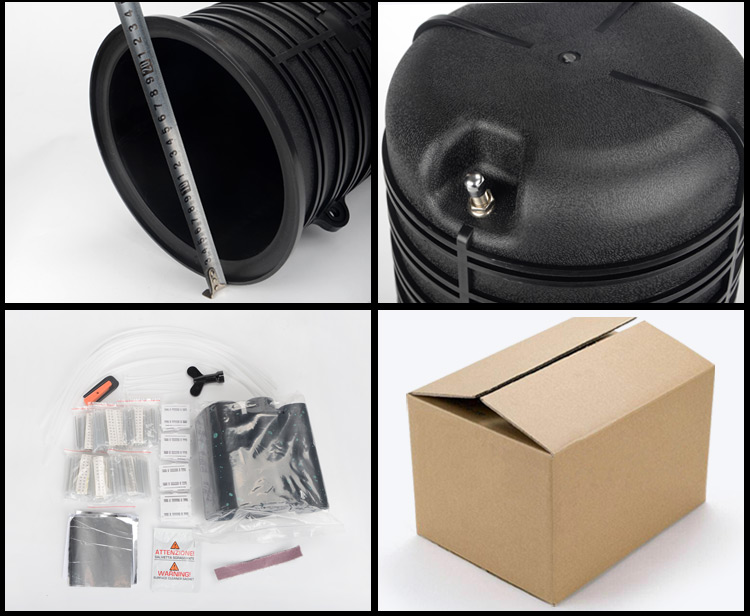

Packing Quantity | 1 pcs / carton
31* 32*55cm 5kg |

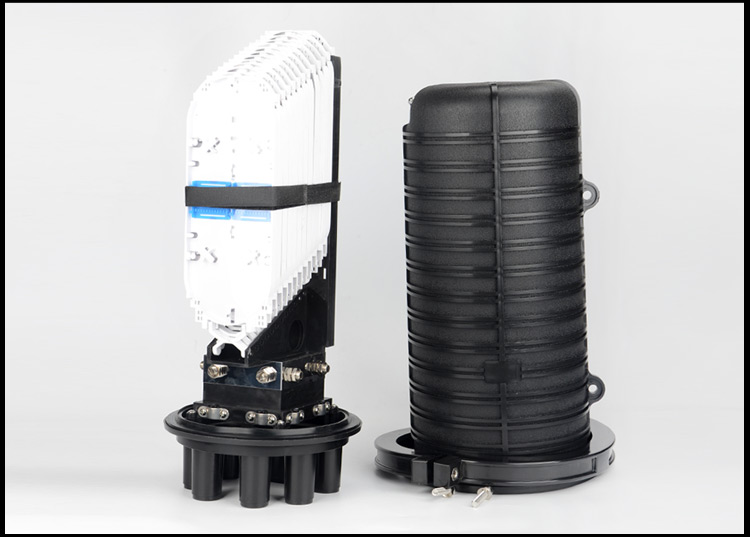

Max Core | 24F/tray, max capacity 288F(12 trays) | Material | Polymer Plastic+Fiber |
Installation Type | Vertical | N. weight | 5.0kg |

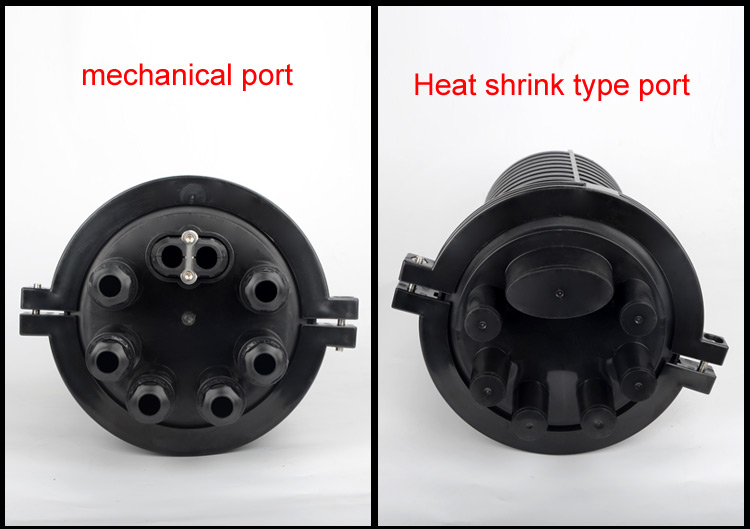

Key Features: | 1.Suitable for ordinary fiber and ribbon fiber. 2.Fully kitted with all parts for convenient operation. 3.Overlap structure in splicing tray for easy installation. 4.Fiber-bending radium guaranteed more than 40mm. 5.Easy to install and re-entry with a common can wrench. 6.Excellent Anti-removable Screw Opening Type to protect fiber and splice ensuring durability. 7.Stand up to severe condition of moisture,vibration and extreme temperatures. 8.Mechanical sleeve or heat shrinkable fixing sleeve for optional. |
