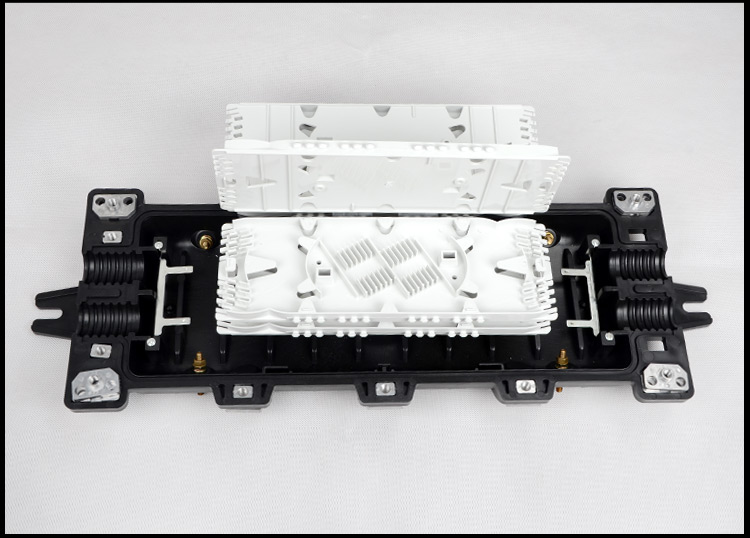

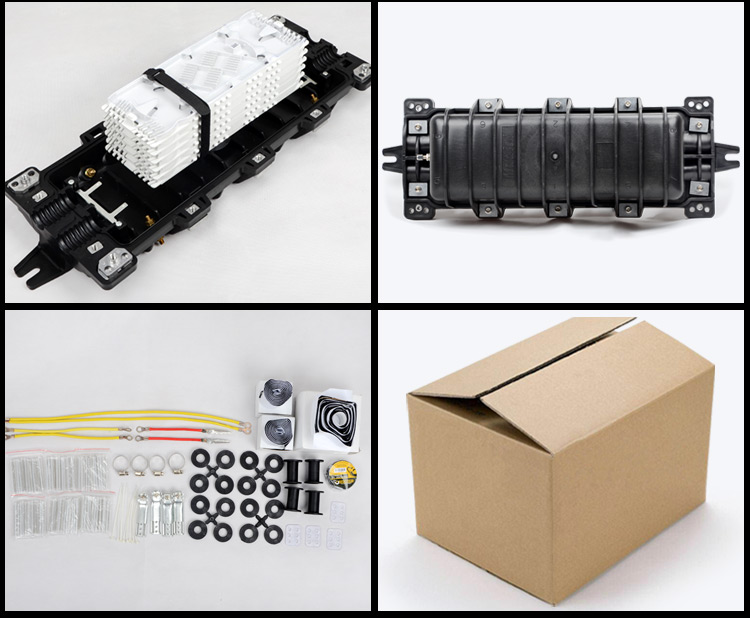

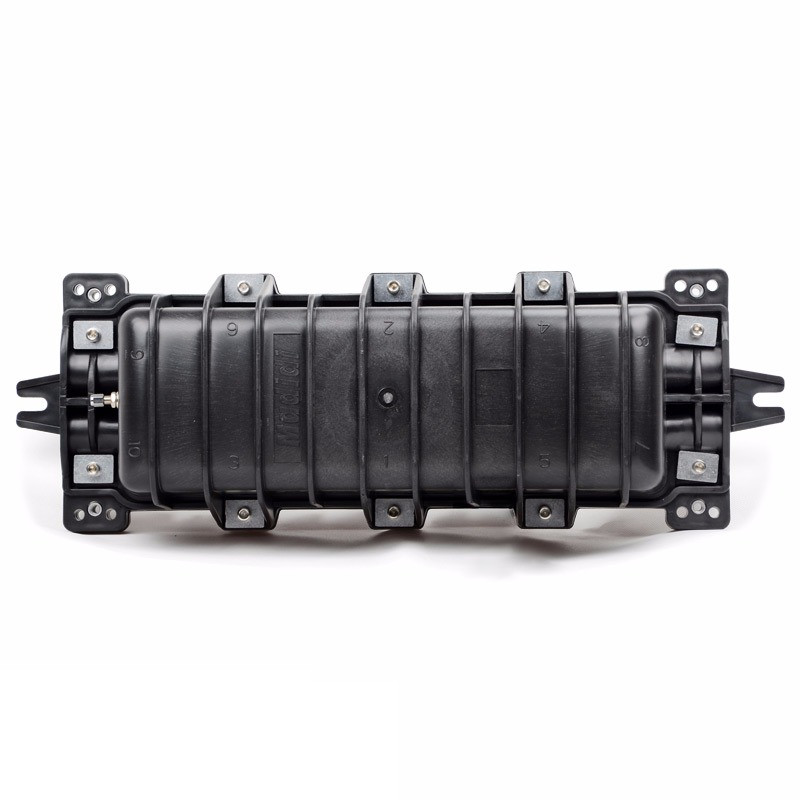

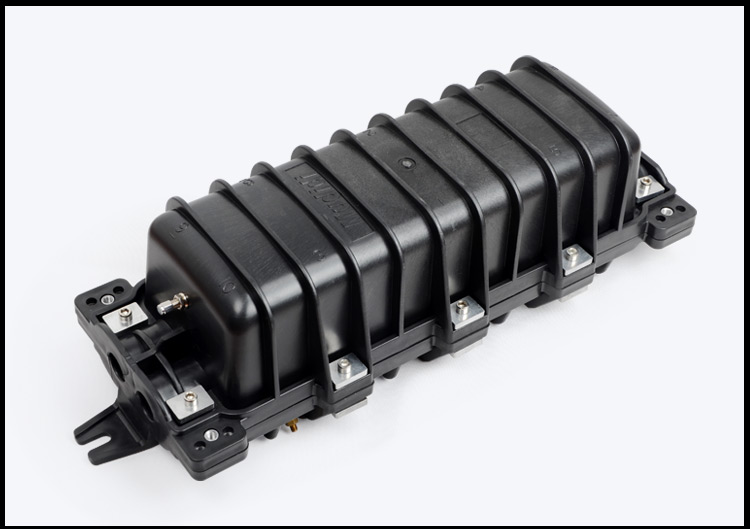

Product name | Fiber Splice Box | IP Rate | IP65 |
Product Model | FCBD144B | Packing Size
Inner Box Size |
640*210*175 mm
670*240*200 mm |
Ports | 2 inlet port φ25mm
2 out port φ25mm |
Packing Quantity | 4 pcs / carton
68*49*41cm 24kg |
Max Core | 24F/tray, max capacity 144F(6 trays) | Material | Polymer Plastic+Fiber |
Installation Type | Horizontal | G. weight | 6kg |
Key Features: | 1.Suitable for ordinary fiber and ribbon fiber. 2.Fully kitted with all parts for convenient operation. 3.Overlap structure in splicing tray for easy installation. 4.Fiber-bending radium guaranteed more than 40mm. 5.Easy to install and re-entry with a common can wrench. 6.Excellent Anti-removable Screw Opening Type to protect fiber and splice ensuring durability. 7.Stand up to severe condition of moisture,vibration and extreme temperatures. |
