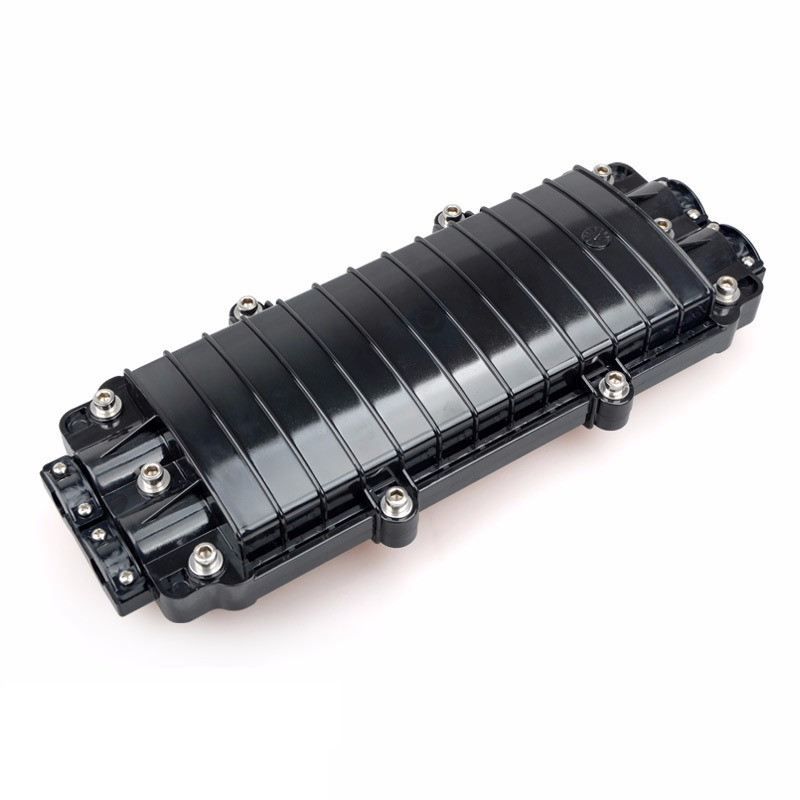

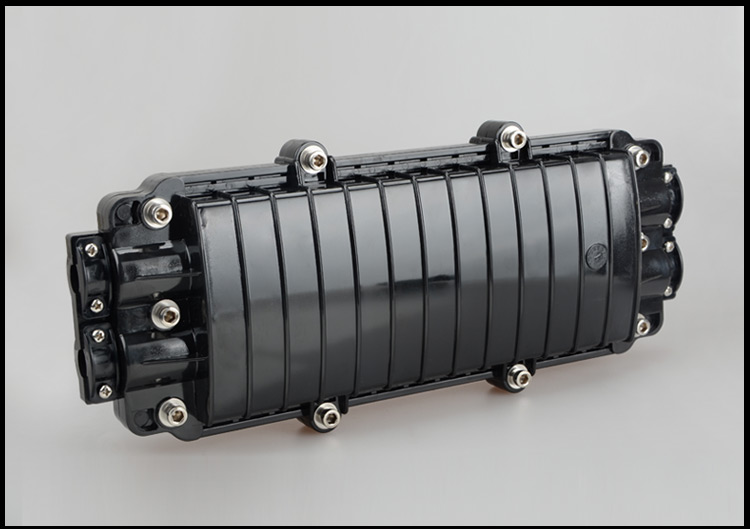

Product name | Fiber Splice Box | IP Rate | IP65 |
Product Model | FCBD-48 | Packing Size
Inner Box Size |
410*175*75 mm
420*180*100 mm |
Ports | 2 inlet port φ15mm
2 out port φ15mm |
Packing Quantity | 10 pcs / carton
54*47*38cm 17.5kg |

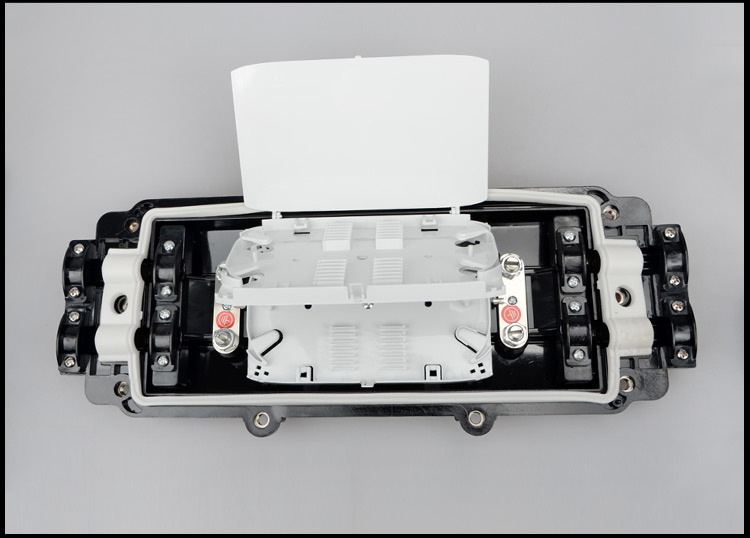

Max Core | 24F/tray, max capacity 48F(2 trays) | Material | ABS |
Installation Type | Horizontal | G. weight | 2.0kg |
Key Features: | 1.Suitable for ordinary fiber and ribbon fiber. 2.Fully kitted with all parts for convenient operation. 3.Overlap structure in splicing tray for easy installation. 4.Fiber-bending radium guaranteed more than 40mm. 5.Easy to install and re-entry with a common can wrench. 6.Excellent Anti-removable Screw Opening Type to protect fiber and splice ensuring durability. 7.Stand up to severe condition of moisture,vibration and extreme temperatures. |
