Product name | Fiber Optic Joint Closure | IP Rate | IP67 |

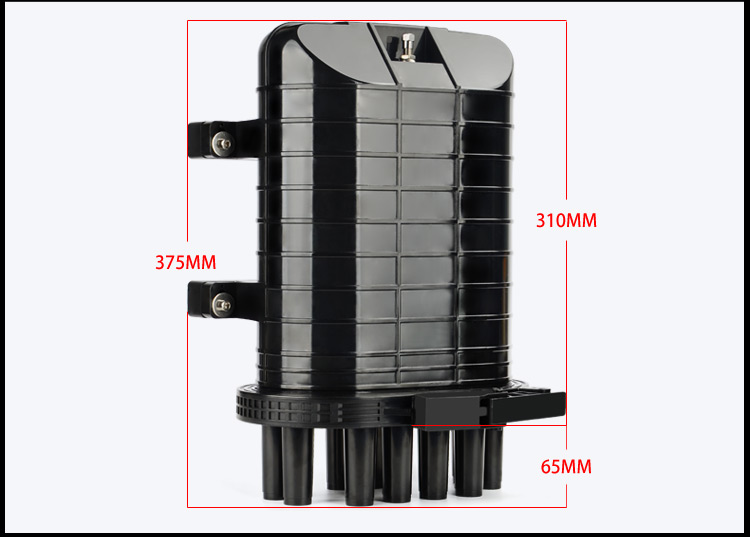

Product Model | FCBF-144T | Product Size
Inner Box Size |
375*280*195mm
380*280*205 mm |
Ports | 1 inlet port 62*36mm
8 out port φ22mm |
Packing Quantity | 8 pcs / carton
83* 58*40cm 25.8kg |
Max Core | 12F/tray, max capacity 144F(12 trays) | Material | PC-ABS |
Installation Type | Vertical | G. Weight | 3.4kg |

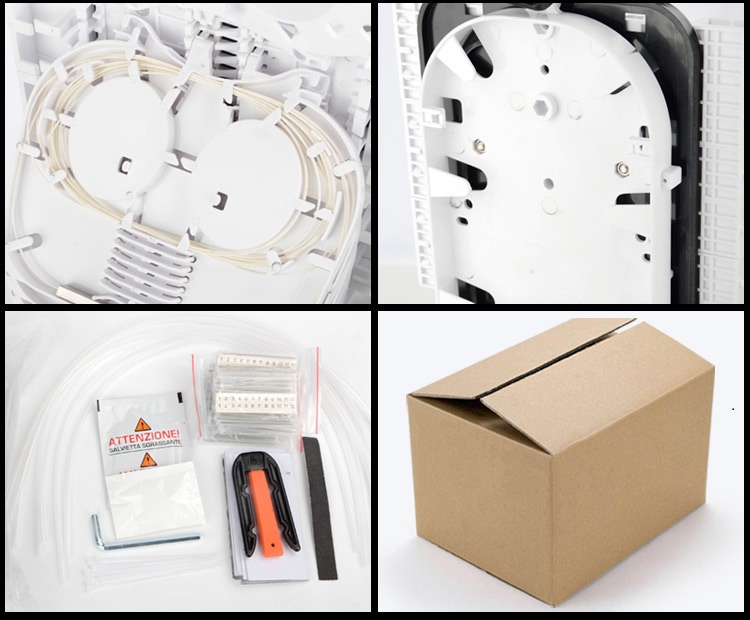

Key Features: | 1.Suitable for ordinary fiber and ribbon fiber. 2.Fully kitted with all parts for convenient operation. 3.Overlap structure in splicing tray for easy installation. 4.Fiber-bending radium guaranteed more than 40mm. 5.Easy to install and re-entry with a common can wrench. 6.Excellent Anti-removable Screw Opening Type to protect fiber and splice ensuring durability. 7.Stand up to severe condition of moisture,vibration and extreme temperatures. 8.Mechanical sleeve or heat shrinkable fixing sleeve for optional. |
