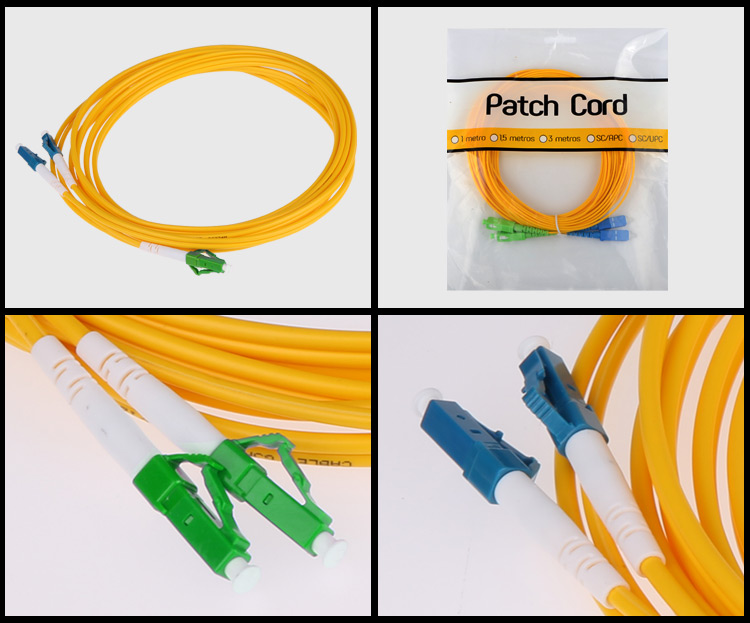

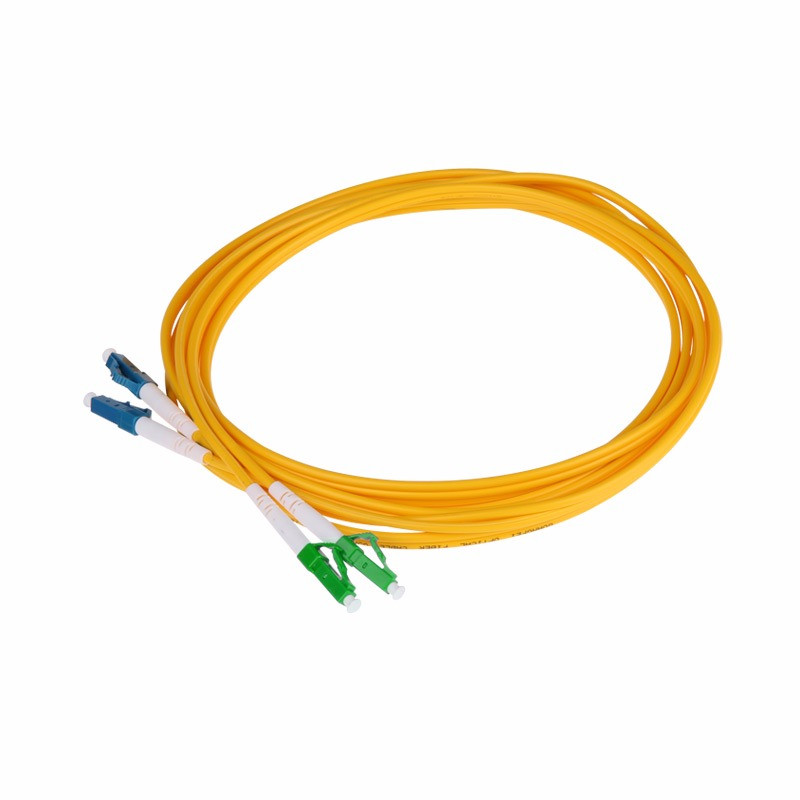

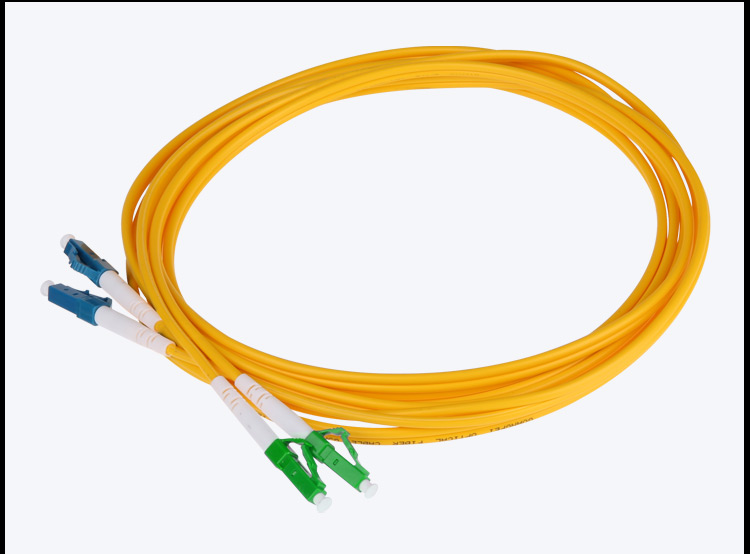

Fiber patch cord LC/UPC-LC/APC SM DX

Product Name	Fiber Optic Patch cord	Fiber Model	Single mode
Product Model	LC/UPC-LC/APC SM DX	Fiber Core	9/125μm
Optical Connector	LC-LC	Jacket Color	Yellow
Connector End Face	UPC/APC	Jacket Diameter	2.0mm/3.0mm
Work Environment	Indoor	Jacket Material	PVC/LSZH

Parameter	SC, LC,FC,ST fiber patch cord
	SM			MM
	PC	UPC	APC	PC
Insertion loss(typical)	≤0.3	≤0.3	≤0.3	≤0.3
Return loss	≥45	≥50	≥60	≥30
Interchangeability	≤0.2dB
Salt Spray	≤0.1dB
Repeatability	≤0.1dB (1000 times)
Vibration	≤0.2dB (550Hz 1.5mm)
Temperature	≤0.2dB (-40+85 sustain 100 hours)
Humidity	≤0.2dB (+25+65 93 R.H.100 hours)
Apex Offset	0μm ~ 50μm
Radius of Curvature	7mm ~ 25mm

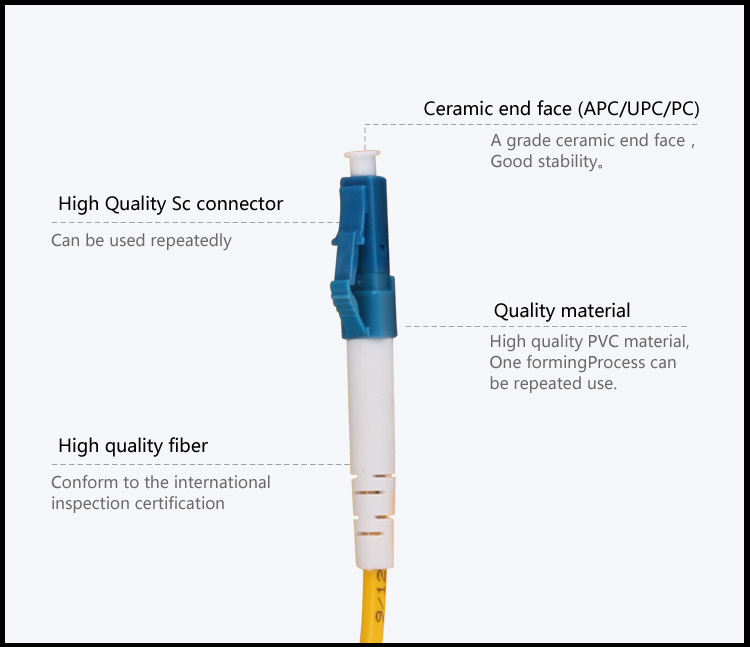

Fiber patch cord LC_UPC-LC_APC SM DX_2

What is your company product?

Our main product ranges Fusion Splicer,SFP+ Modules,GEPON OLT, GEPON XPON ONU, and fiber optic accessories,like fast connectors,adapters,splitters,drop cable,patch cord...with good quality and factory direct price.

What is your payment terms?

T/T 30% as deposit, and 70% before delivery. We'll show you the prepared photos of the products and packages before you pay the balance.

Can we get free samples?

Of course, please find our sales manager to get your free sample.

Can I customized the products?

Some products are customized, any specification will be accepted. Please kindly tell our your request.

What is your terms of trade?

We offer EXW,FOB,CIF,CNF and DDP or as your request.

How long is the warranty?

We provide customers with 2 year warranty service, and our business with us for more than 1 year will provide 3 years warranty service.

Can I get a sample first?

Of course, you can get a sample to test first, I make sure you will reorder and be happy with our high quality goods.

What is your delivery time about the production?

Generally, it will take 3 to 5 days after receiving your deposit. The specific delivery time depends on the items and the quantity of your order.Large quantity will delivery faster.

What is your shipment items?

We can ship the items by DHL, FedEx, TNT, UPS, EMS, Aramex and China Mail Post.
Of course, we can also use cheaper shipping methods, such as by sea.It can reduce your costs even more and help you build a more advantageous business.If you are importing from another country for the first time and have no previous import experience, we also have DDP (DDP means you don't need to pay any tax) option available, please contact our sales consultant.
