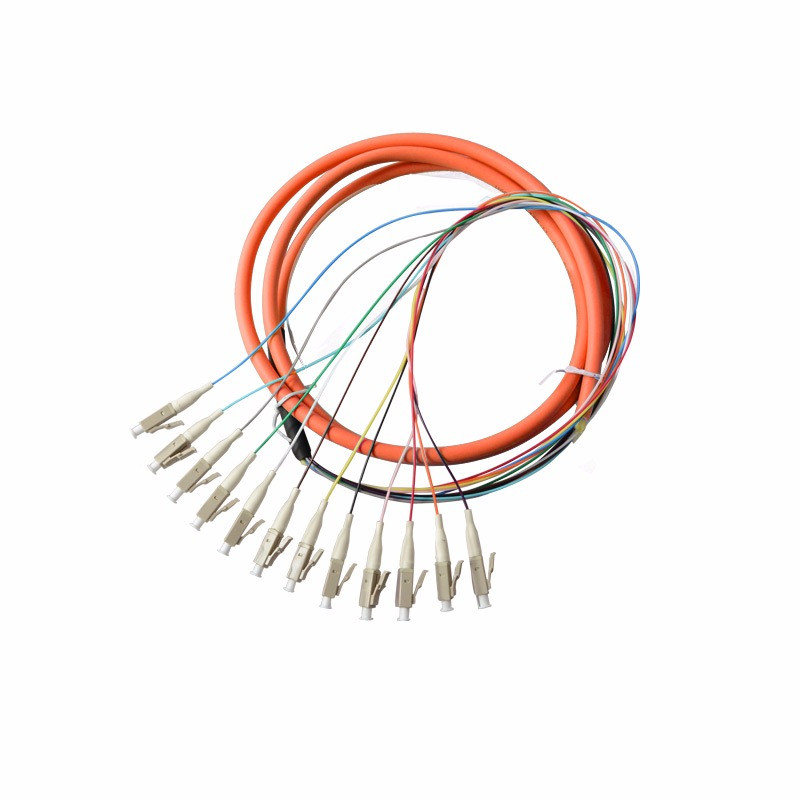

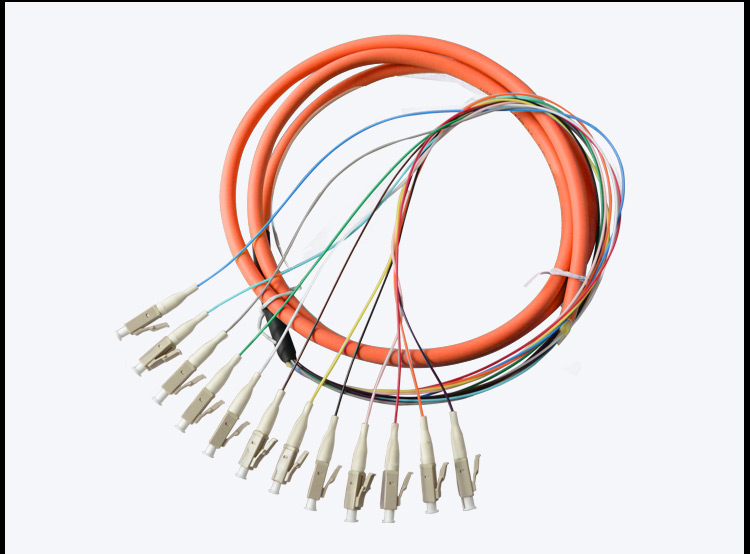

Fiber patch cord Pigtail 12 Core LC/UPC MM OM1
Product Name | Bundle Pigtail | Fiber Model | Multimode |
Product Model | 12 Core LC/UPC MM OM1 | Fiber Core | 62.5/125μm |
Optical Connector | LC | Jacket Color | Orange |
Connector End Face | UPC | Jacket Diameter | Mother cable 6mm/Subcable 0.9mm |
Work Environment | Indoor | Jacket Material | PVC/LSZH |
Parameter | SC, LC,FC,ST fiber patch cord | |||
SM | MM | |||
PC | UPC | APC | PC | |
Insertion loss(typical) | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 |
Return loss | ≥45 | ≥50 | ≥60 | ≥30 |
Interchangeability | ≤0.2dB | |||
Salt Spray | ≤0.1dB | |||
Repeatability | ≤0.1dB (1000 times) | |||
Vibration | ≤0.2dB (550Hz 1.5mm) | |||
Temperature | ≤0.2dB (-40+85 sustain 100 hours) | |||
Humidity | ≤0.2dB (+25+65 93 R.H.100 hours) | |||
Apex Offset | 0μm ~ 50μm | |||
Radius of Curvature | 7mm ~ 25mm |
