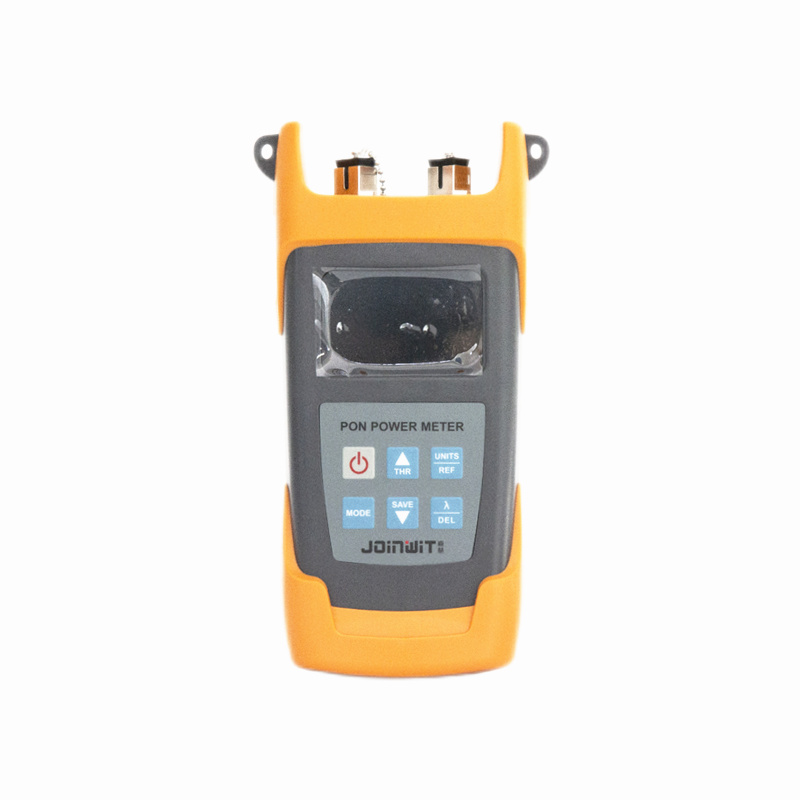

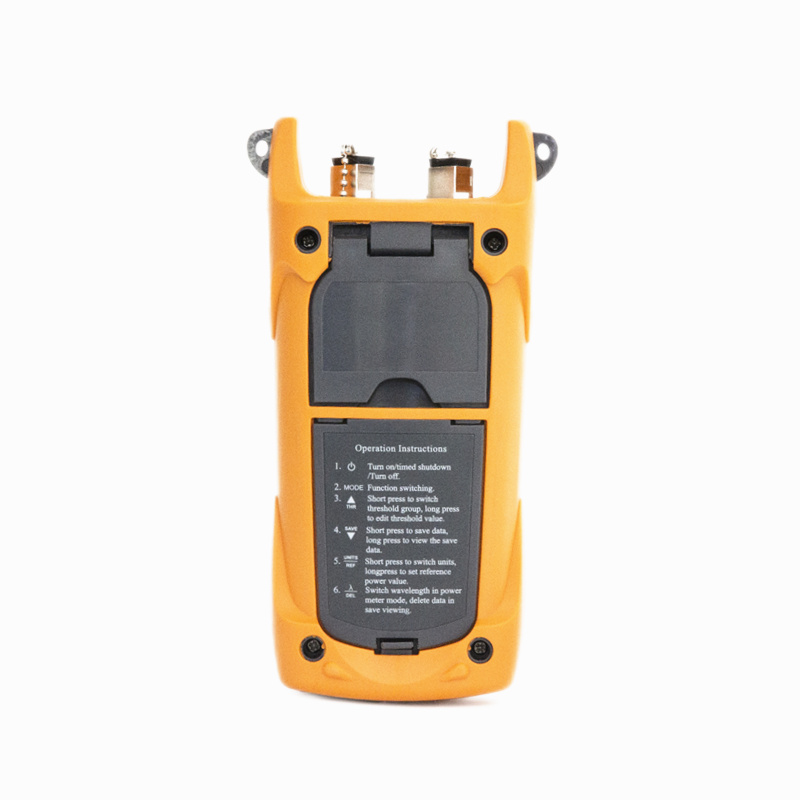

JW3213 PON Optical Power Meter is able to simultaneously test and estimate the signals of the voice, data and video.
It is an essential and ideal tool for the construction and maintenance of the PON projects.
Application:
* Fiber Optical Communication Systems
* Optical Fiber CATV
* Passive Optical Network (PON)
* Fiber Optic Amplifiers
* Fiber Optic Access Networks/LAN
* Monitoring Systems
* Optical Fiber Sensor
Wavelength(nm)
|
800~1700nm
|
Measurement Range (dBm)
|
-50~+26
|
Uncertainty
|
±3%
|
Calibrated Wavelength(nm)
|
850,980,1300,1310,1490,1550
|
Resolution(dB)
|
0.01
|
Battery Operating Time
|
140 h with 1.5VBattery(3pcs)
|

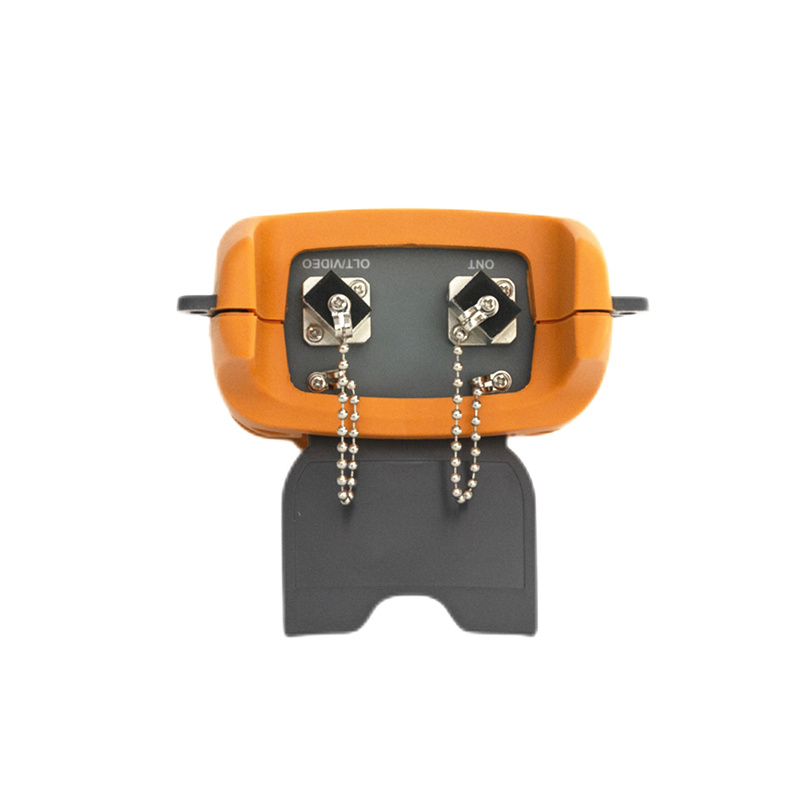

Optical Connector
|
FC(interchangeable SC,ST) / as well as 2.5mm universal
|
Weight﹙g﹚
|
370
|
