Specification:

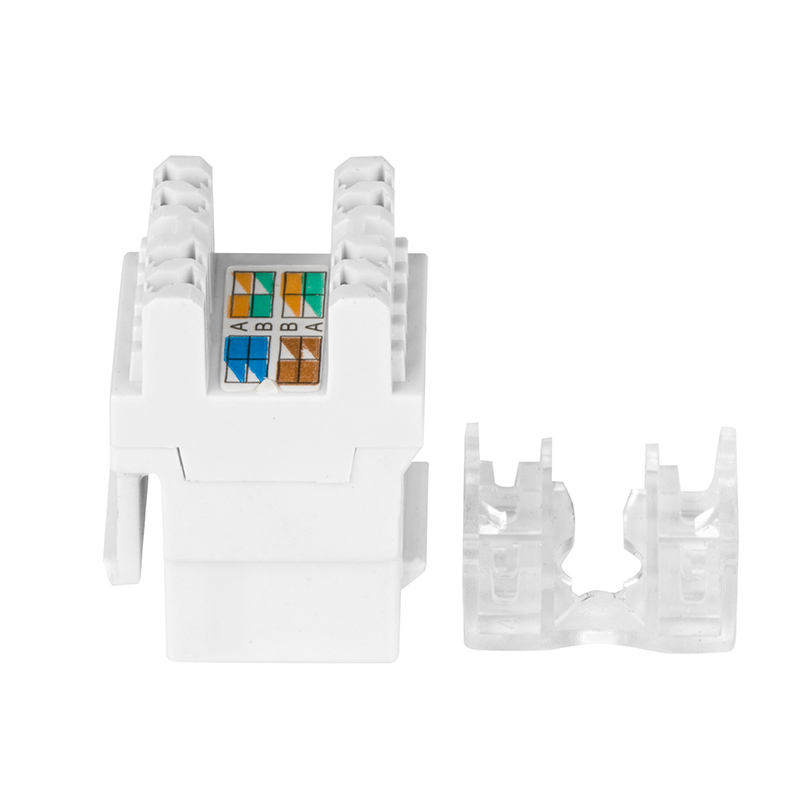

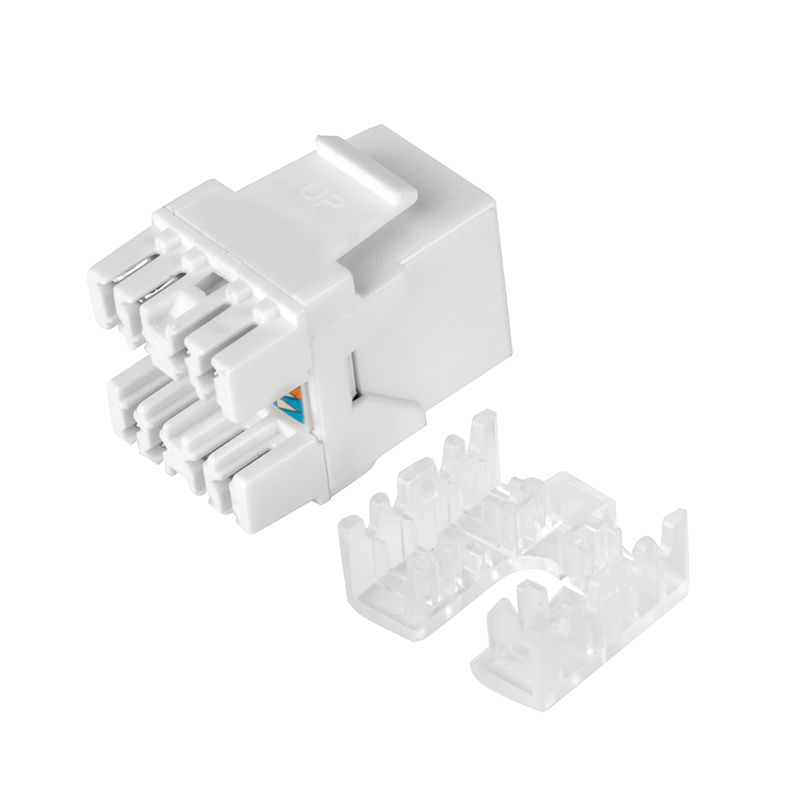

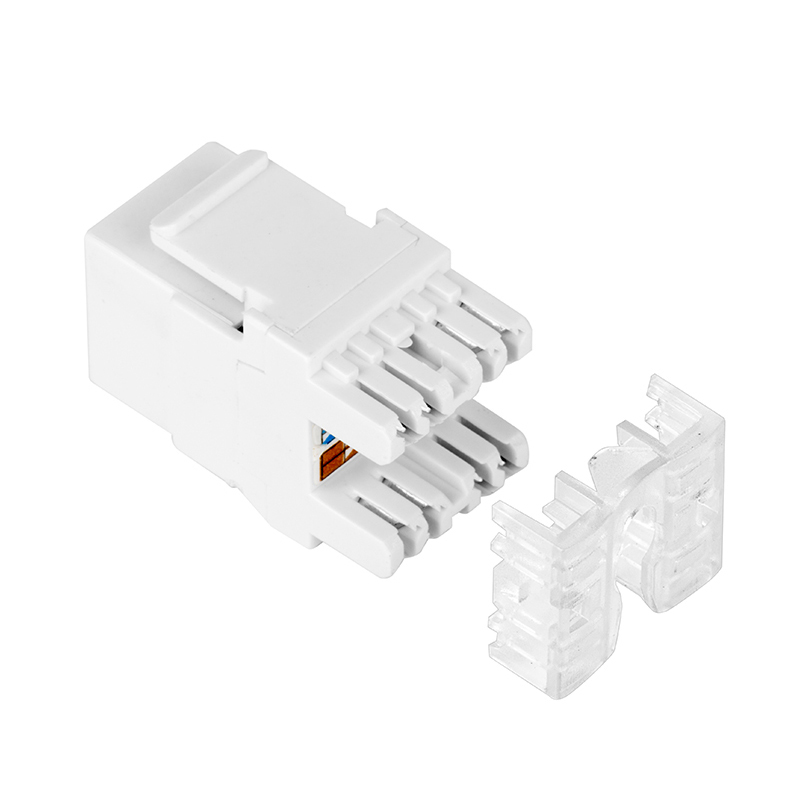

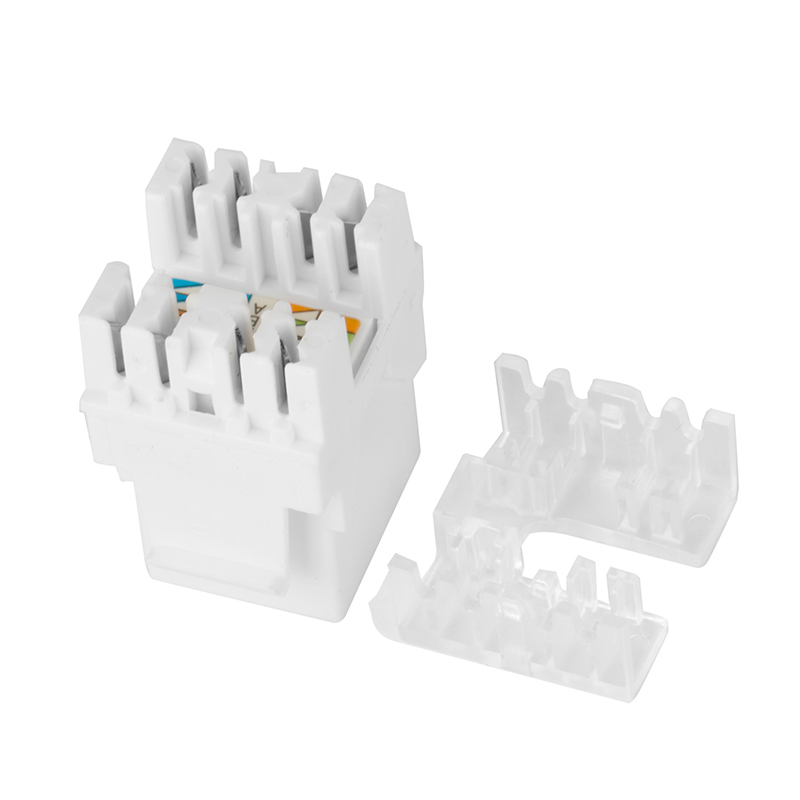

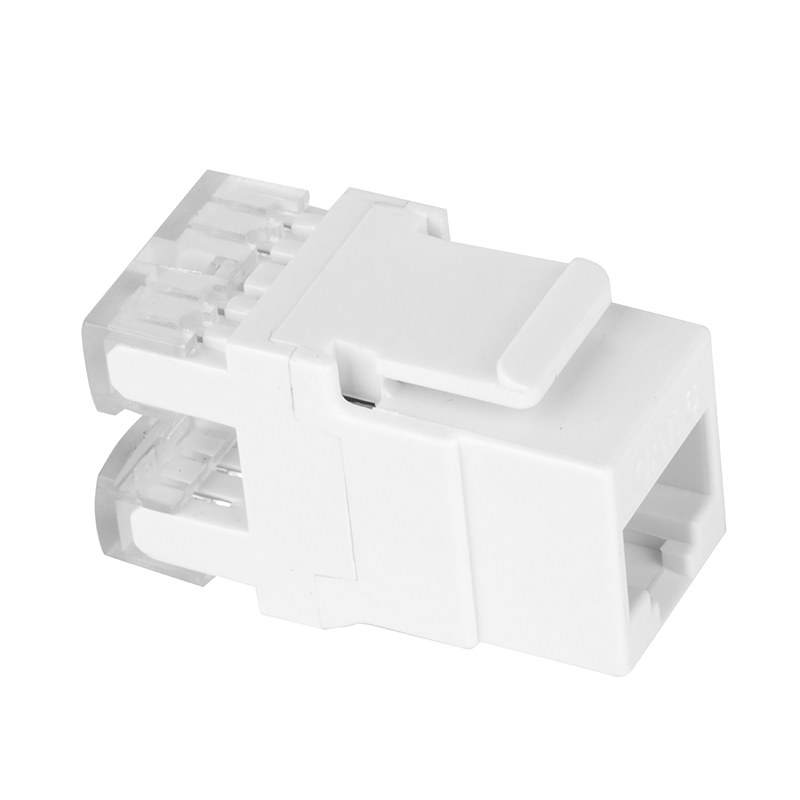

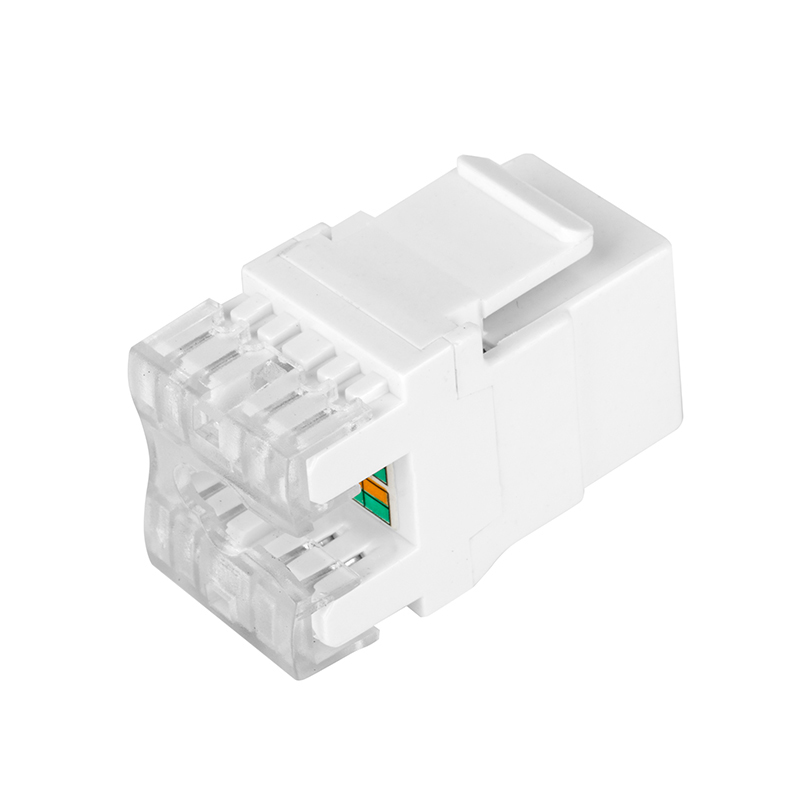

1.UTP RJ45 keystone jack
2.Meet TIA/EIA-568-A and TIA/EIA-568-B Category6 requirements
3.Meet TIA/EIA TSB-40
4.Meet ISO/IEC Generic Cabling Standard 11801
5.Meet CENELEC Generic Cabling Standard EN50173
6.Angle: 180 Degree
Electrical :
1.According to UL 1863
2.Voltage rating: 150 Volts
3.Current Rating : 1.5AMP
4.Contact resistance: 20 m-ohm
5.Insulation Resistance: 500M-ohm
6.Dielectric Withstand Voltage: 1000 V AC RMS, 60Hz 1min
Environment :
1.Storage: -40~ 85°c
2.Operation: 0~70°c
3.Housing Material: ABS-UL90V-0
Machanical :
1.Panel Frame: Carbon Steel, Powder Coating in black color
2.Contact Material: PC-UL90V-0
3.Contact: PC Ul94V-0, 0.45mm(0.018″) Diameter Phosphor bronze with 3 U” to 50 U” Gold plating on contact area.
4.RJ45 Jack Life 750 times MIN.
5.Insertion Life: ≥ 1000 Mating Cycles
6.IDC: PC UL94V-0, Accept 22-26 AWG Solid Wire.
7.Tia Cat.5e Perm Link Test: Worst Pair NEXT Margin ≥3dB
8.Retentiveness of insertion structure: 50N 60±5s
9.PCB: FR4 1.6mm(0.04″) thickness, 2 layers
