Introduction

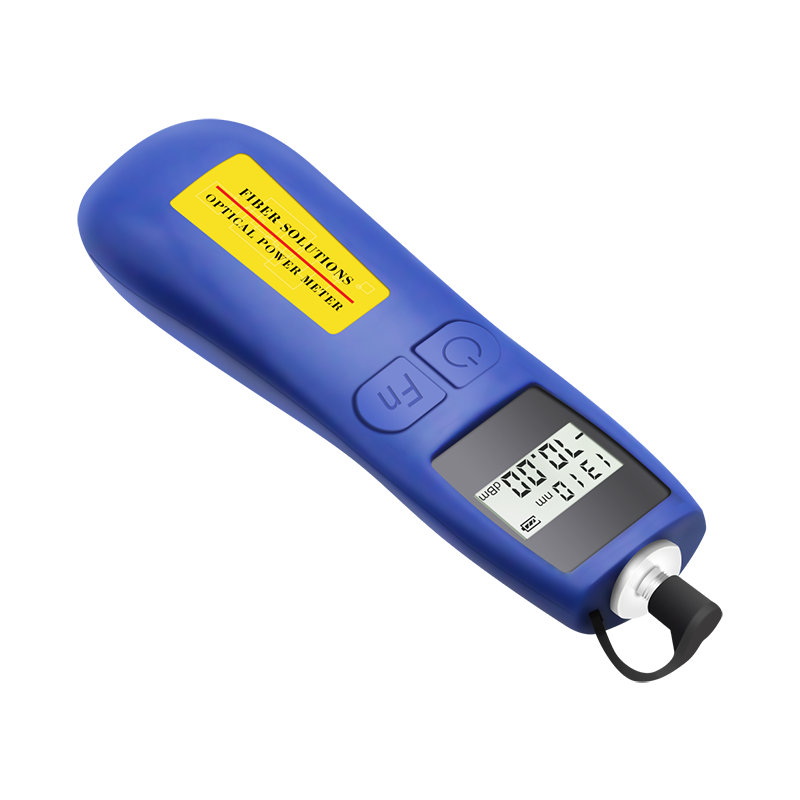

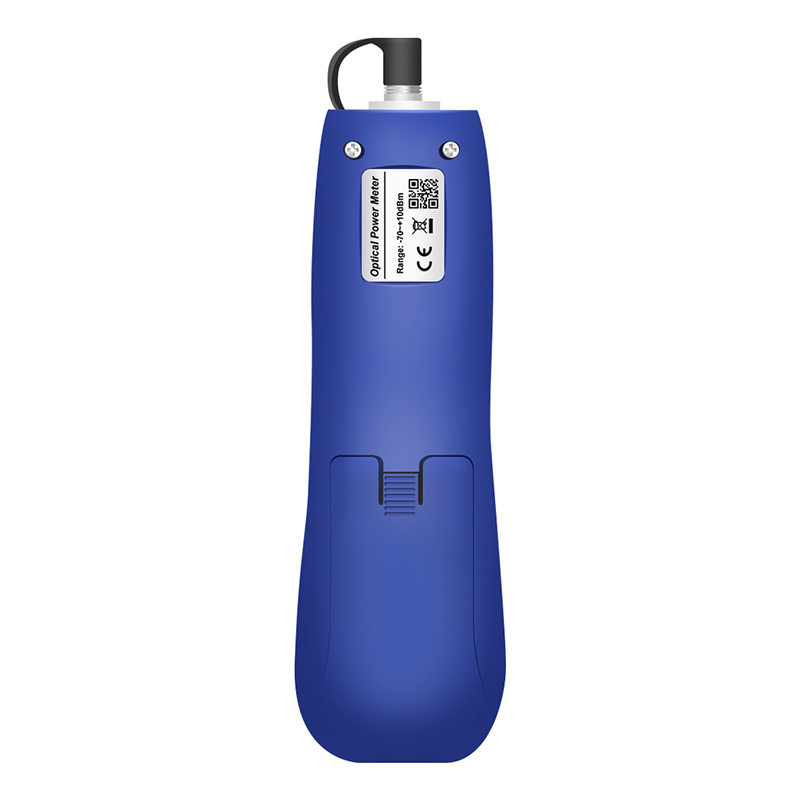

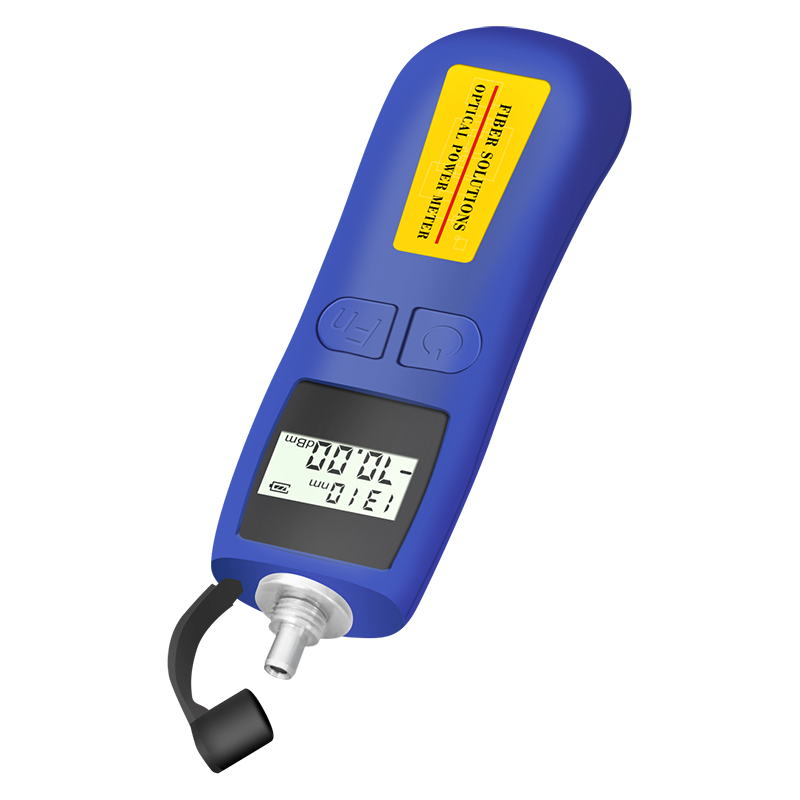

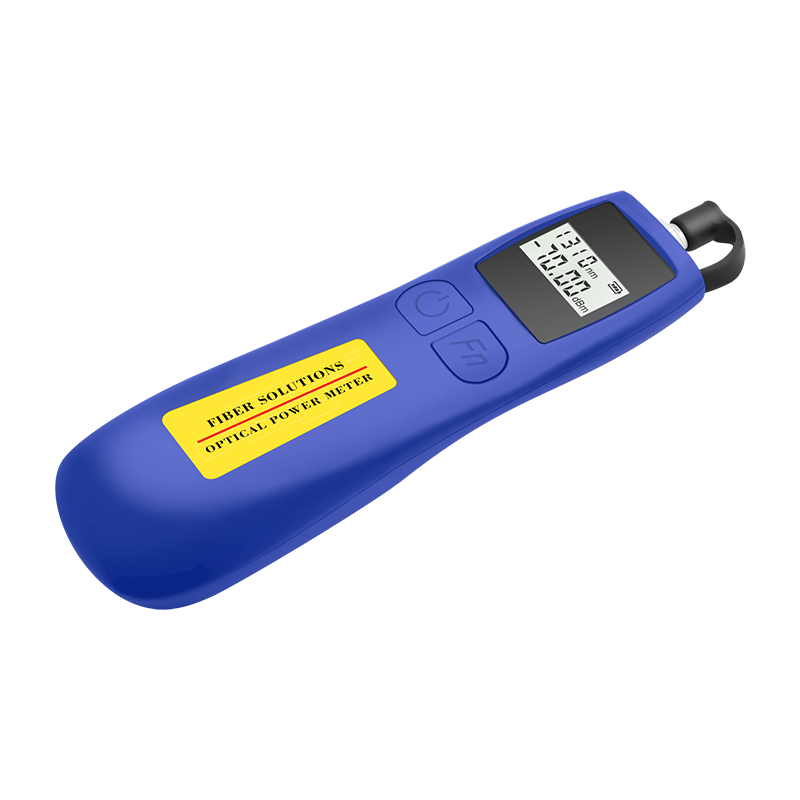

BOP05 Mini Optical Power Meter has compact structure and stable performance and ensures high measuring precision of 850nm, 1300nnm, 1310nm, 1490nm, 1550nm and 1625nm wavelengths. Used together with Optical Laser Source, it could accurately measure the loss of bier, cable and other passive optical devices.
Features
■Imported sensor head
■2.5mm universal interface (support FC/SC/ST connectors)
■Low power consumption, continuous work more than 100 hours
■Linear optical power and logarithmic power display
■Automatic measuring range adjust and power remains indication
■Relative value measurement
■Compact and portable design.
Specification
|
Type
|
BOP05-A
|
BOP05-C
|
|
Display Range
|
-70~+10dBm @1550nm
|
-50~+26dBm @1550nm
|
|
Resolution
|
0.01dB
|
|
|
Calibrated Wavelength
|
850/1300/1310/1490/1550/1625
|
|
|
Sensor Type
|
InGaAs
|
|
|
Accuracy
|
0.35dB±1nW
|
0.35dB±10nW
|
|
Working Wavelength
|
800~1700nm
|
|
|
Continuous Working Hours
|
about 230 hours (standby time: about 3,500 hours)
|
|
|
Power Source
|
2*AAA dry batteries
|
|
|
Working Temp.
|
-10 to +50℃; <90%RH
|
|
|
Storage Temp.
|
-20 to +70℃; <90%RH
|
|
|
Dimension
|
L120nmxW33nmxH30mm / about 70g
|
|
|

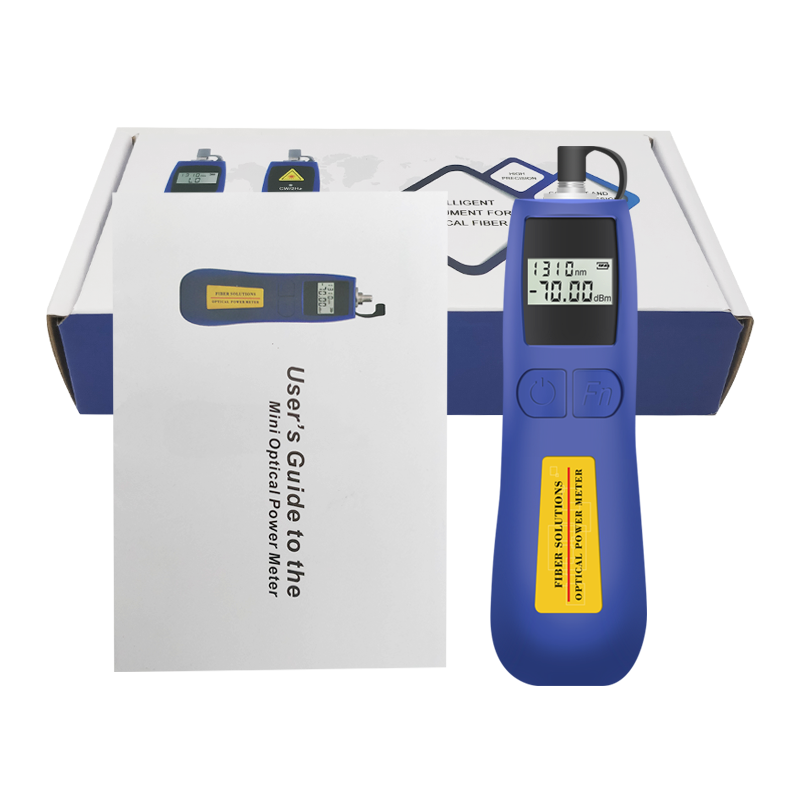

Standard Accessories:
|
||
|
2*AAA batteries, carrying bag, user manual
|
||
|
Optional Accessories:
|
||
|
Male FC to female LC adapter for LC connector
|
||
