◇ Self Calibration
◇ Set the Auto Off
◇ Wavelength Memory function after turn off the tester
◇ High Accuracy, high ,High sensitivity, high linearity
◇ Stable VFL Output
◇ USB Charge port

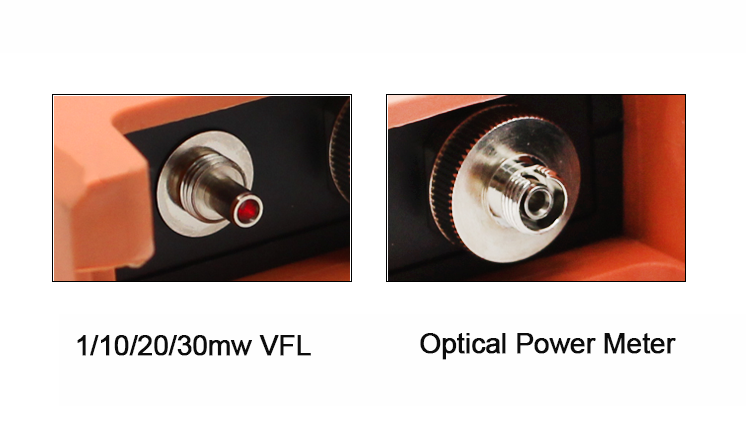

◇ FC,SC Connector
◇ 18650Li-ion Battery
◇ Lower power consumption design, long standby time
◇ Rubber Out shell, increased the protective properties for field work
Specification
Optical Power Meter | Detector Type | InGaAs |
Optical Connector | SC/FC & 2.5mm Universal | |
Calibrated Wavelengths | 850,1300,1310,1490,1550,1625 nm | |
Measurement Range | -50~+26dBm or -70~+10dBm | |
Accuracy | ±0.2 dB | |
Power Measurement Linearity | ±0.1 dB | |
Display Resolution | ±0.01 dB | |
Power Display Units | dBm,dB, mW, uW | |
Visual Fault Locator | Output power | 1mW/10mW/20mW/30mW |
Range | 12-km@SM | |
Connector | SC/FC/ST & 2.5mm Universal | |
Laser safety rating | Class 2 | |
Wavelength | 650nm±20nm | |
Output modes | Continuous (CW),2-3 Hz pulse | |
Reverse battery protection | Yes | |
Others | Power Supply | 18650 Li-ion battery |
Auto Off | 10 minutes | |
Working time | >200hours(only OPM Work) ≥50hours(10mW VFL & OPM Work meanwhile) |
|
Working Temperature | -10℃~+50℃ | |
Weight | 250g | |
Dimensions | 160*75*10mm |
Models
Optical Power Meter | TM263A: -70~+10dBm |
TM263C: -50~+26dBm | |
Fault Locator | TM263X-V1: 1mw VFL(1-5KM) X: A or C |
TM263X-V10: 10mwVFL(8–10KM) X: A or C |
|
TM263X-V20: 20mw VFL(12–15KM) X: A or C |
|
TM263X-V30: 30mwVFL(15-25KM) X: A or C |
