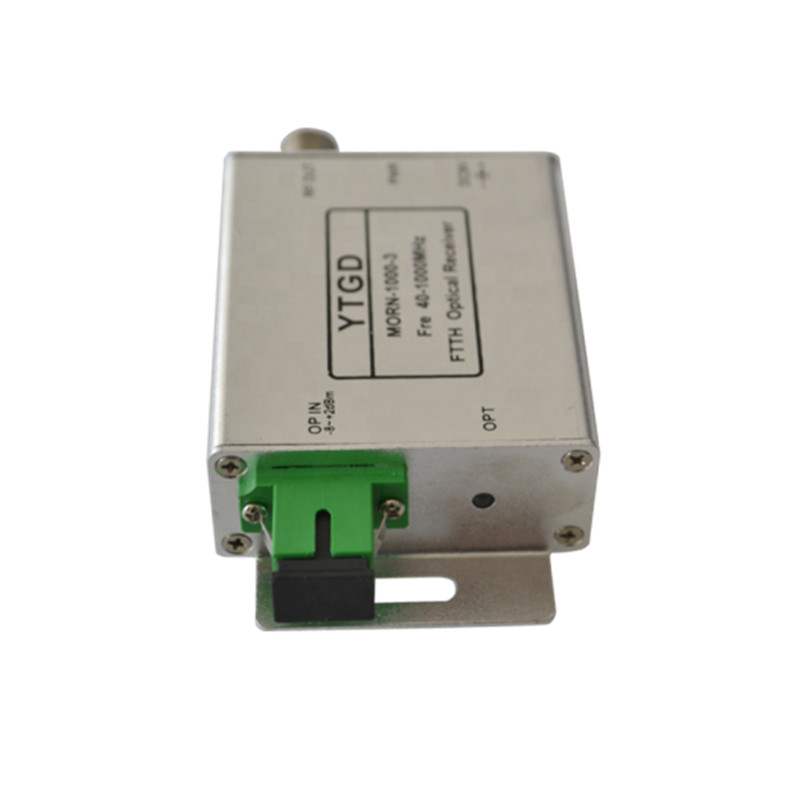

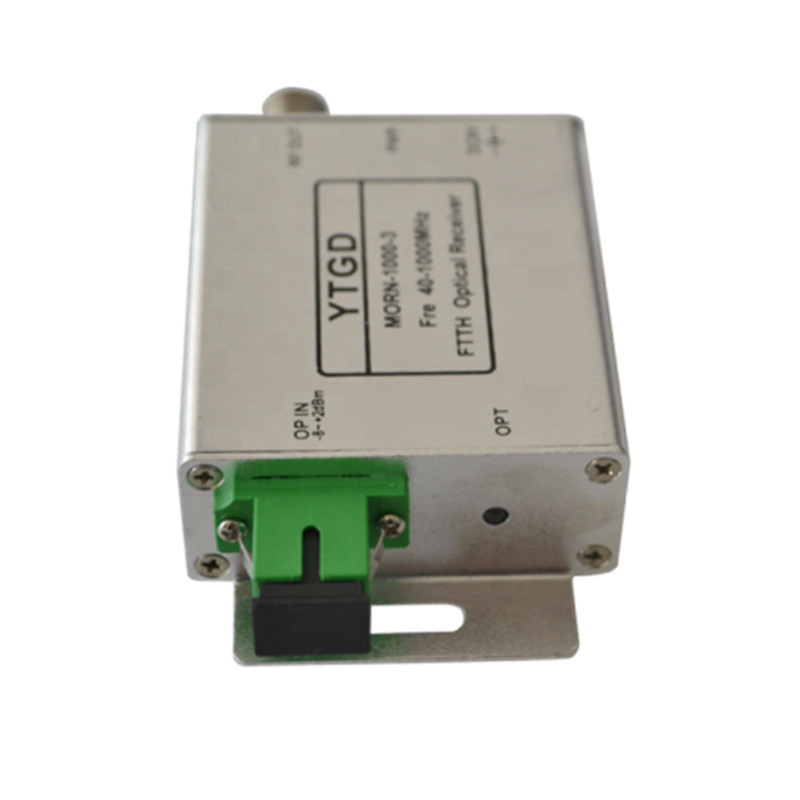

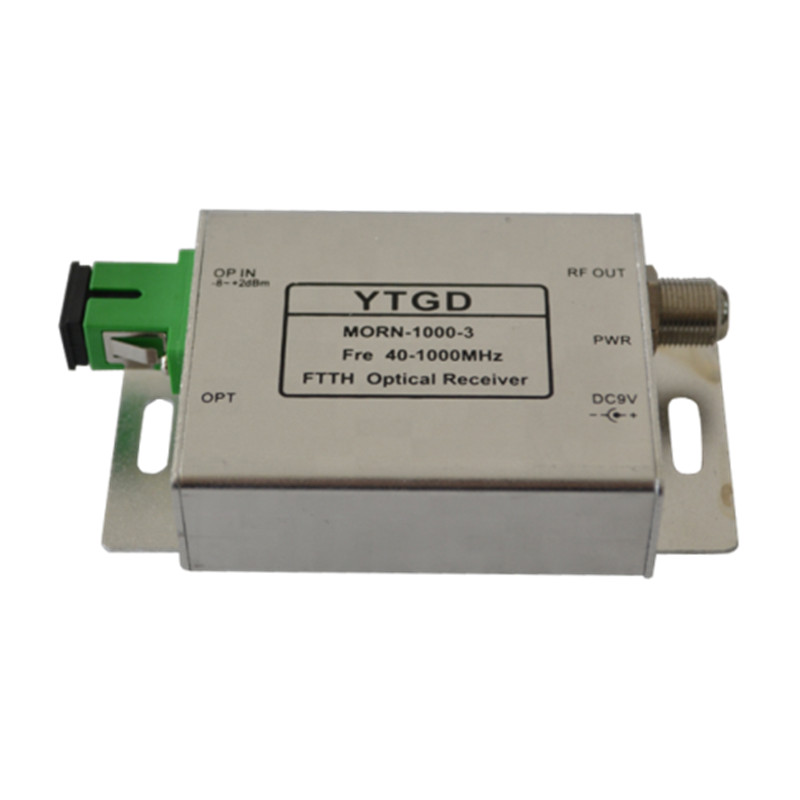

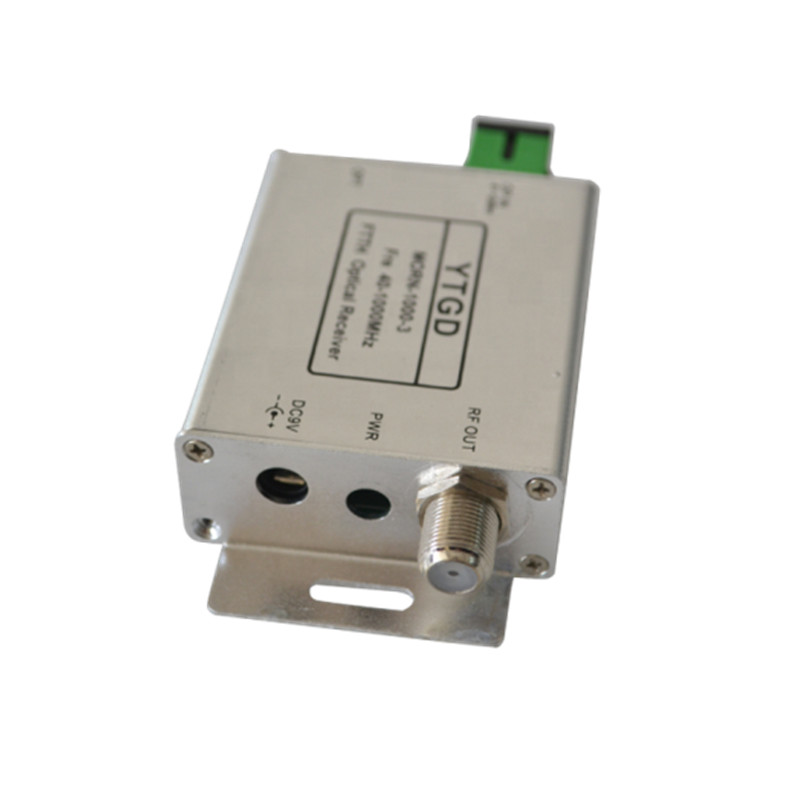

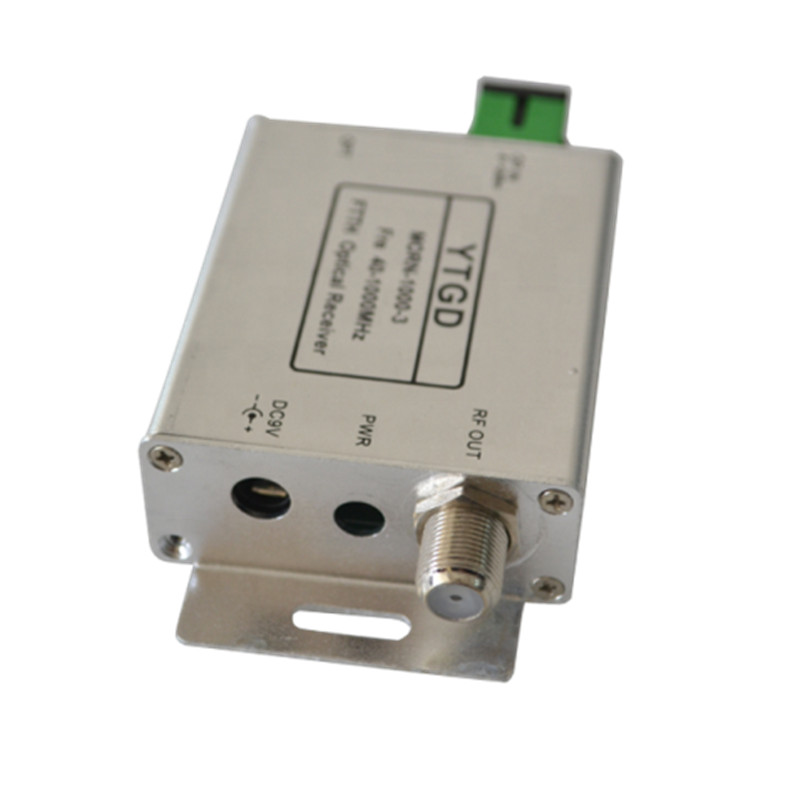

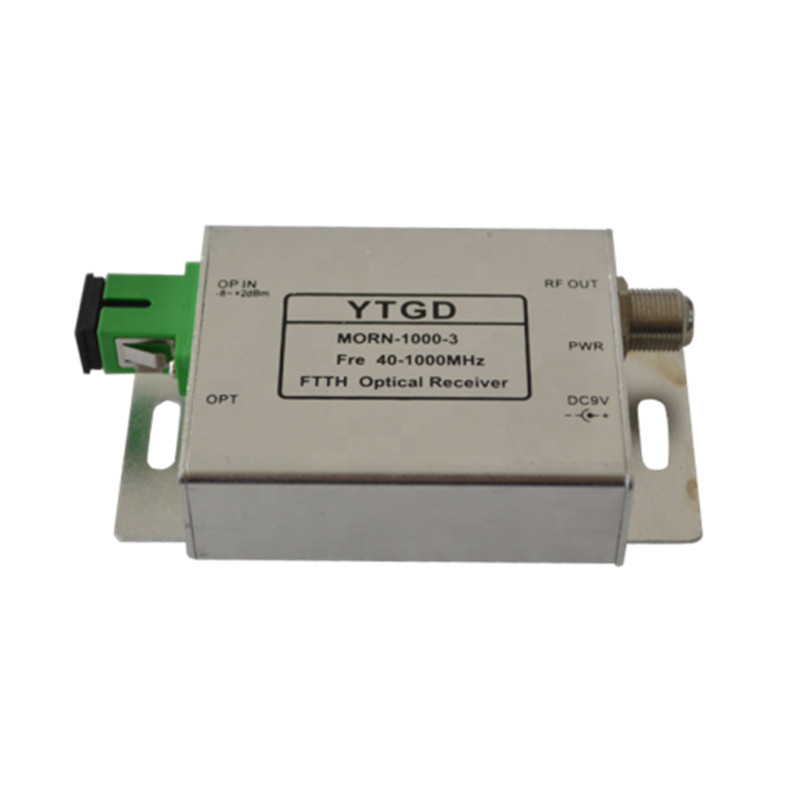

CATV optical receiver AL material
Performance |
unit |
Index |
|
|
FTTH |
Optical properties |
||
Receiving optical power |
dBm |
-15~+2 |
Optical reflection loss |
dB |
>45 |
Light receiving wavelength |
nm |
1100~1600 |
Optical fiber connector |
|
FC/APC SC/APC etc. optional |
Link characteristic |
||
(C/N) |
dB |
≥50 |
(C/CTB) |
dB |
≥65 |
(C/CSO) |
dB |
≥63 |
RF characteristic |
||
Frequency range |
MHz |
45~1200 |
In-band flatness |
dB |
±0.5(45-550MHz);±0.75(550-750/862/1000MHz) |
Output level |
dBμV |
60~85(±1 dBμV) |
