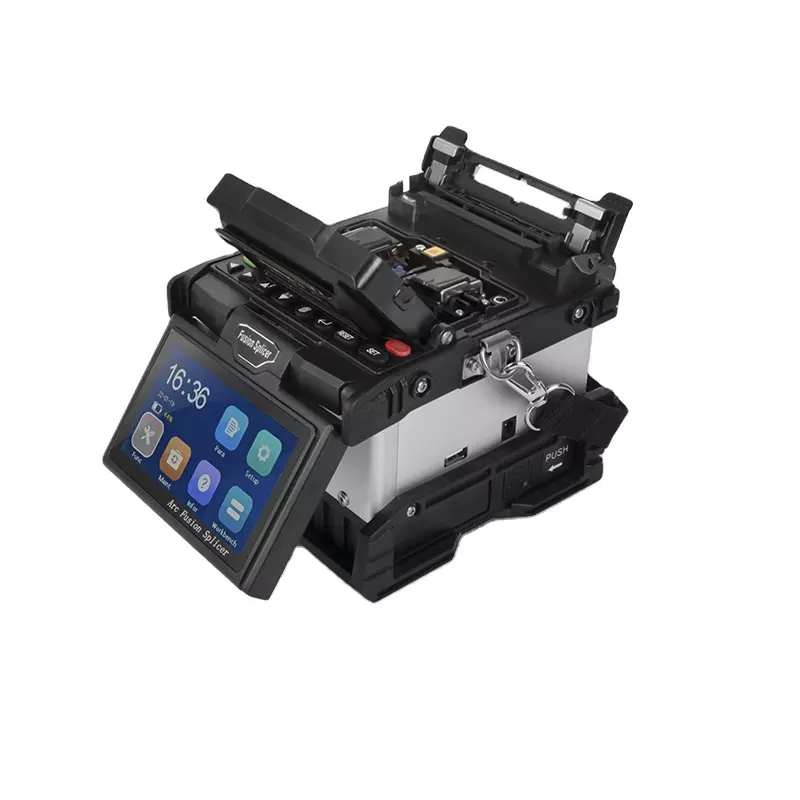

Specification
|

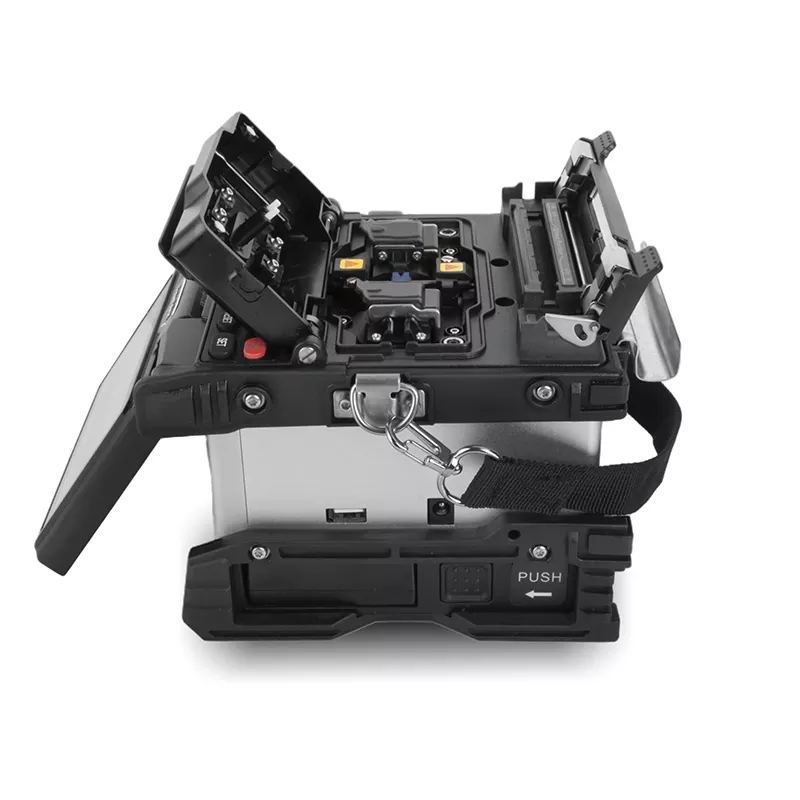

Alignment method
|
4 motors core to core alignment
|
|
Applicable fiber
|
SM(G.652)，MM(G.651)，DS(G.653)，NZDS(G.655)
|
|
Cladding diameter
|
80~150μm
|
|
Coating diameter
|
160~1000μm
|
|
Cleaved length
|
5~16mm ( coating diameter ＜ 250um), 16mm (coating diameter:250-1000um)
|
|
Typical splice loss
|
SM: 0.02dB；MM: 0.01dB；DS: 0.04dB；NZDS: 0.04dB
|
|
Return loss
|
＞60dB
|
|
Splicing program
|
40 groups
|
|
Operation mode
|
Manual/ Automatic
|
|
Auto- heating
|
Available
|
|
Typical splice time
|
6 seconds
|
|
Typical heating time
|
20 seconds for 60mm and 40mm shrinkable sleeves
|
|
Fiber magnification
|
250X(X or Y view), 125X(X and Y view)
|
|

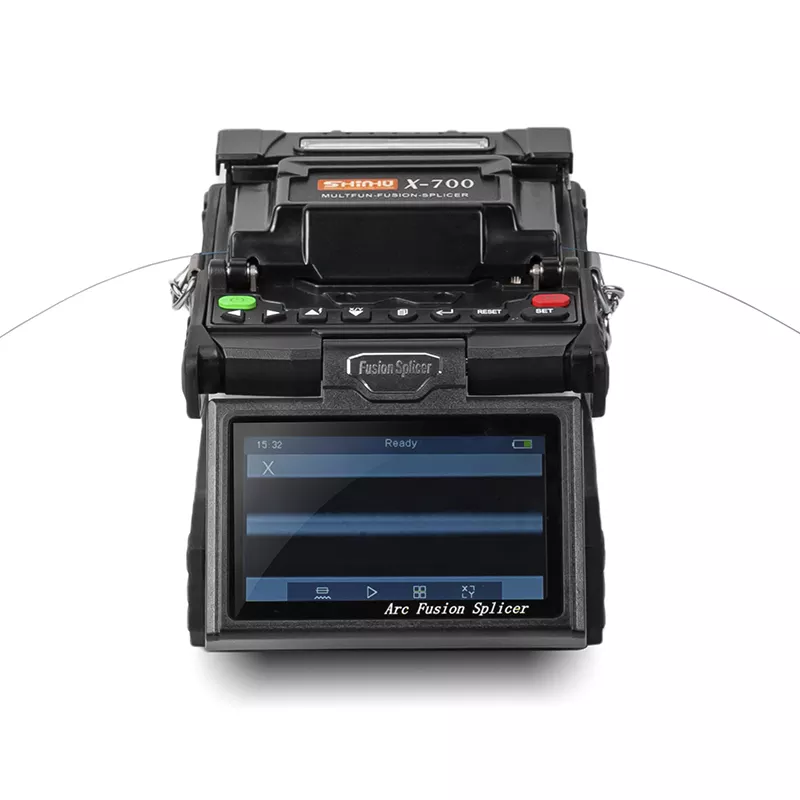

Viewing display
|
Dual high sensitivity camera, 4.3 inch 800*480 LCD Monitor
|
|
Data storage
|
4000 groups data records
|
|
Loss evaluation
|
Available
|
|
Tension test
|
1.8～2.25N
|
|

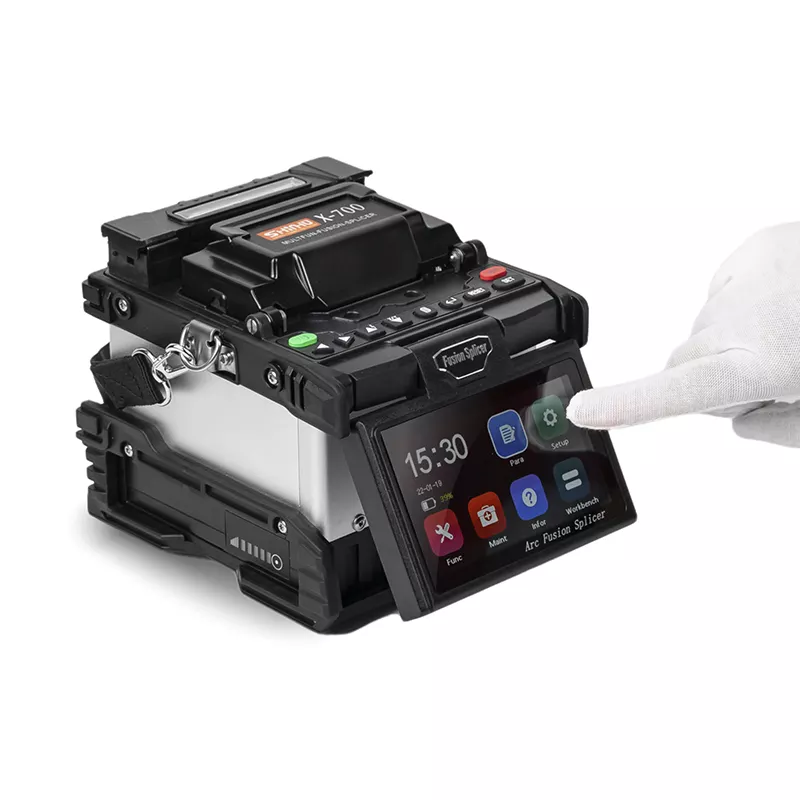

Interface
|
GUI menu interface, easy for operation
|
|
Battery capacity
|
5200mAh Li-battery, 250 cycles splicing and heating
|
|
Power supply
|
Adaptor, input: AC100-240V(50/60HZ),output: DC11-13.5V
|
|
Electrode life
|
More than 4000 ARC discharges, easy to replace
|
|
Terminals
|
USB 2.0 port, for software upgrading, records exporting
|
|
Operating condition
|
Altitude:0-5000m,Humidity:0-95%,Temperature:-10℃～+50℃;Wind:max 15m/s
|
|
Dimension/Weight
|
157mm (L)*136mm (W)*140mm (H) /2.10kg (incuding battery)
|
