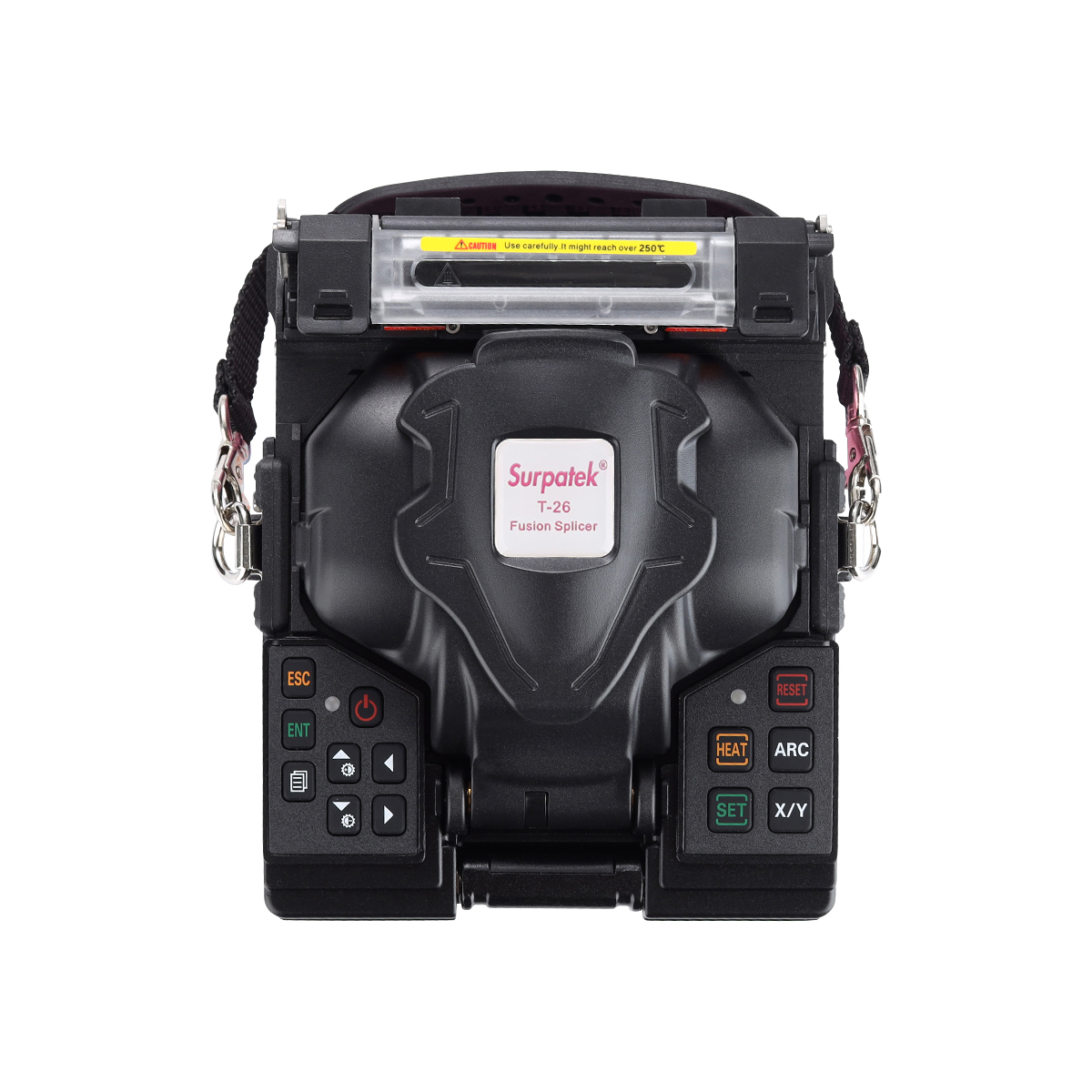

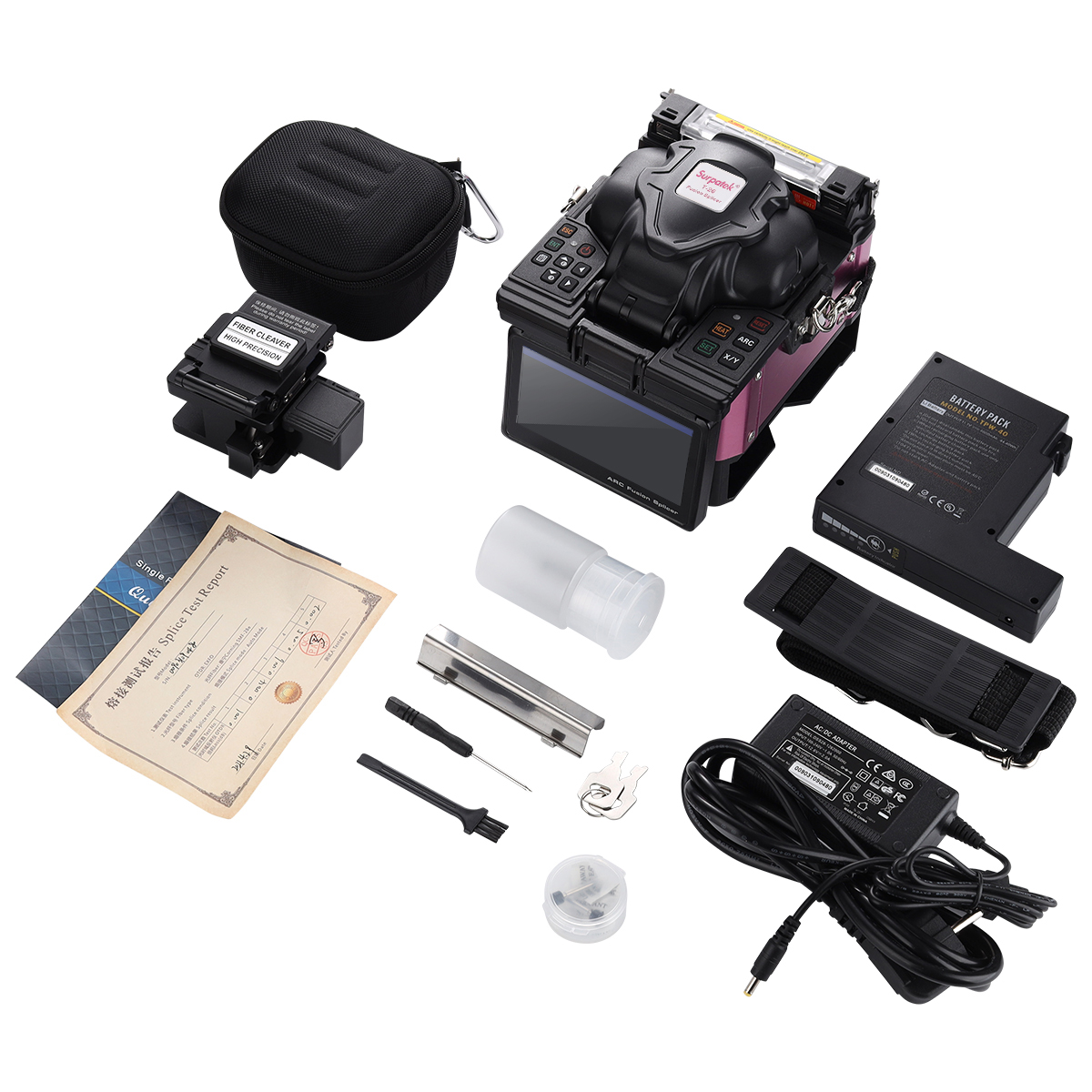

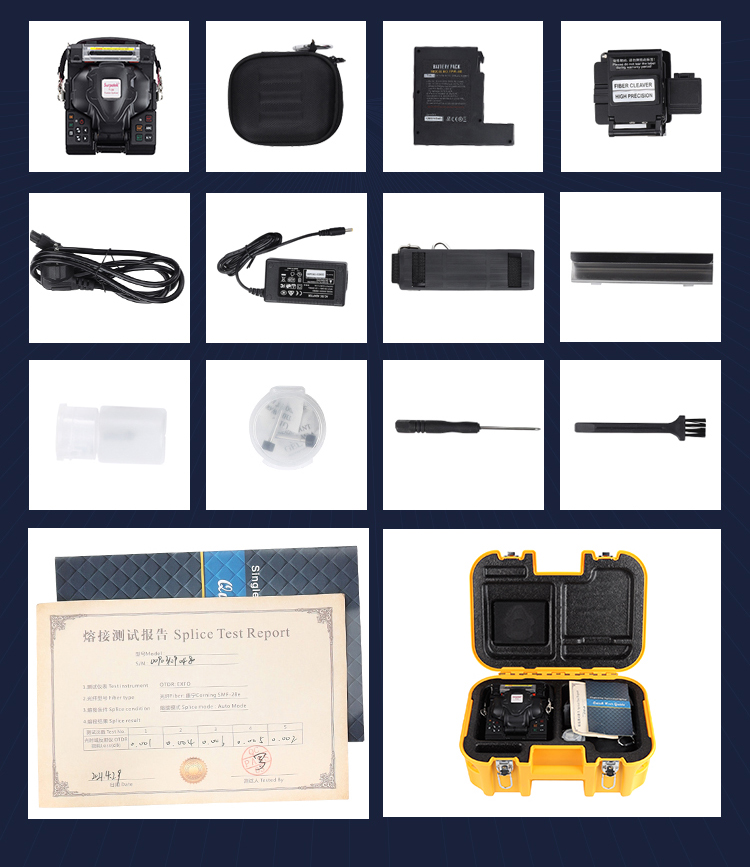

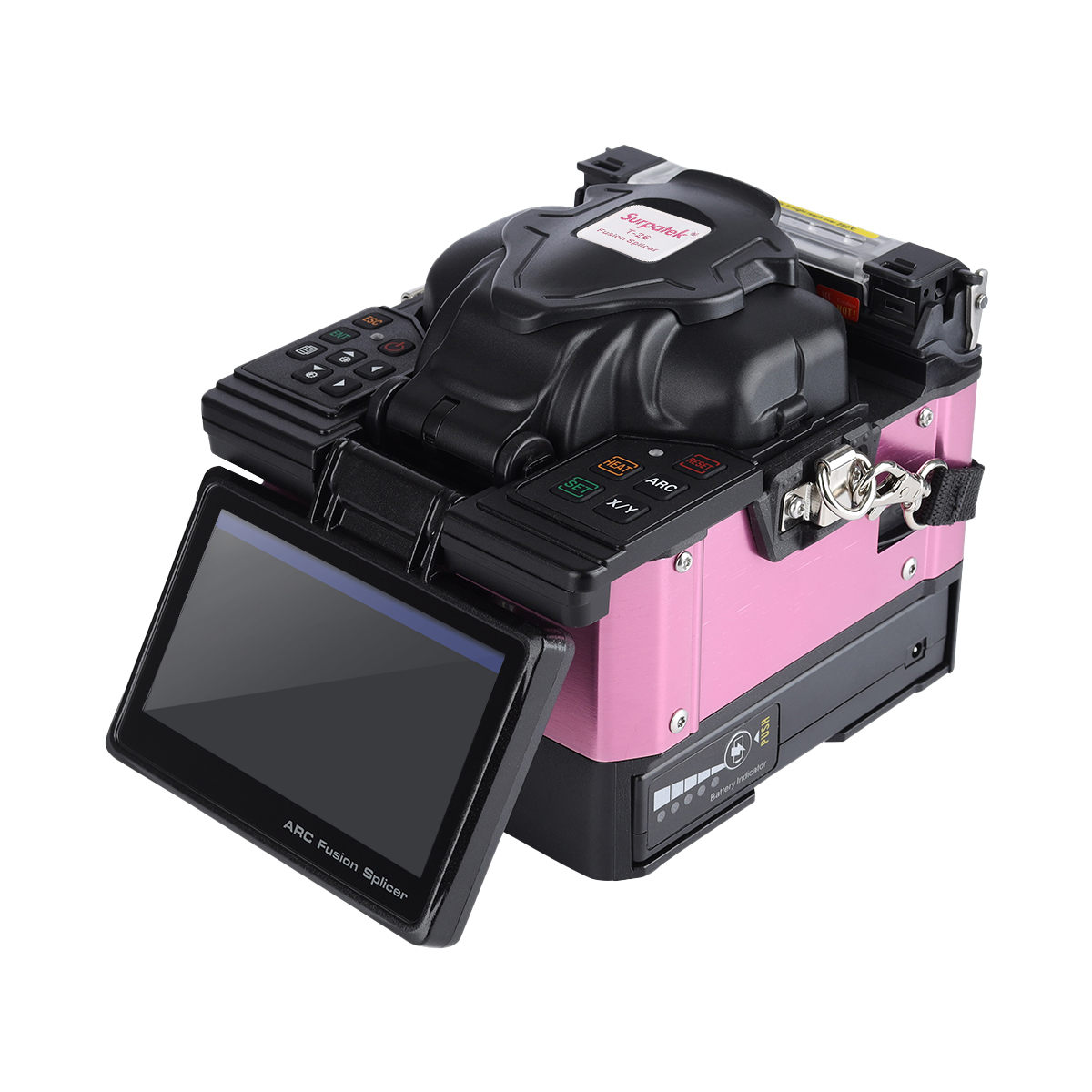

Specification:
|

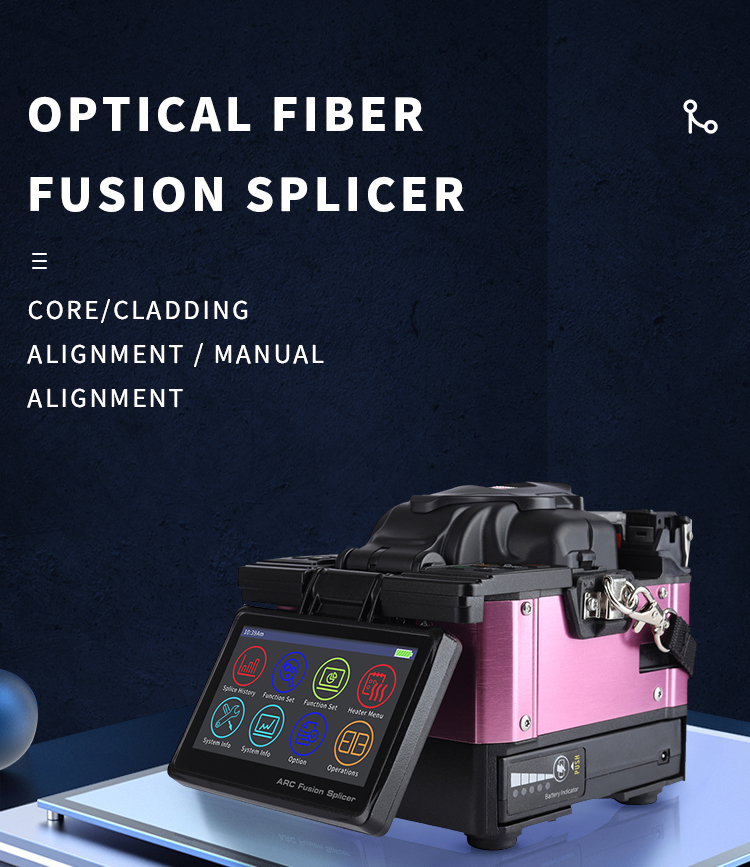

Alignment method
|
4 motors core to core alignment fusion splicer
|
|||
|

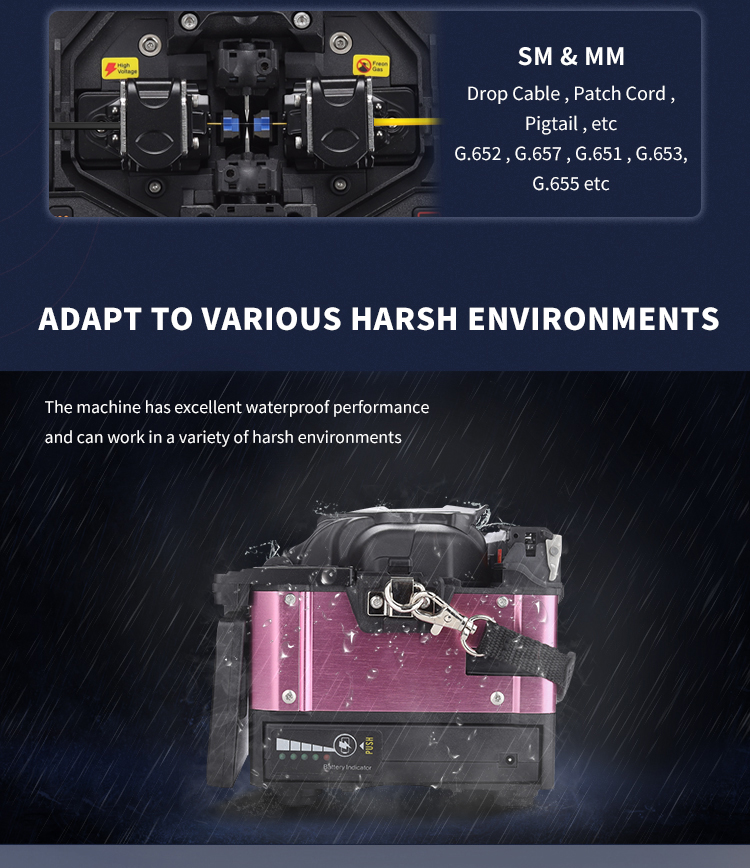

Applicable fiber
|
SM(ITU-T G.652& G.657)/MM(ITU-T G.651)/DS(ITU-T G.653)/NZDS(ITU-T G.655)
|
|||
|
Compatible Fiber Cable
|
0.25-3.0mm / lndoor Cable
|
|||
|
Cleaved Length
|
Diameter: 0.125 -1mm / Cleave Length: 8-16mm
|
|||
|
Cladding Diameter
|
80 – 150µm
|
|||
|
Splicing Mode
|
Pre-set 41 splicing modes, max 100 modes
|
|||
|
Heating Mode
|
Pre-set 5 heating modes (20/30/40/50/60mm), max 100 modes
|
|||
|
Typical Splice Loss
|
SM:0.01dB / MM:0.01dB / DS:0.03dB / NZDS:0.03dB / G.657:0.03dB (ITU-T Standard)
|
|||
|
Return Loss
|
≥60dB
|
|||
|

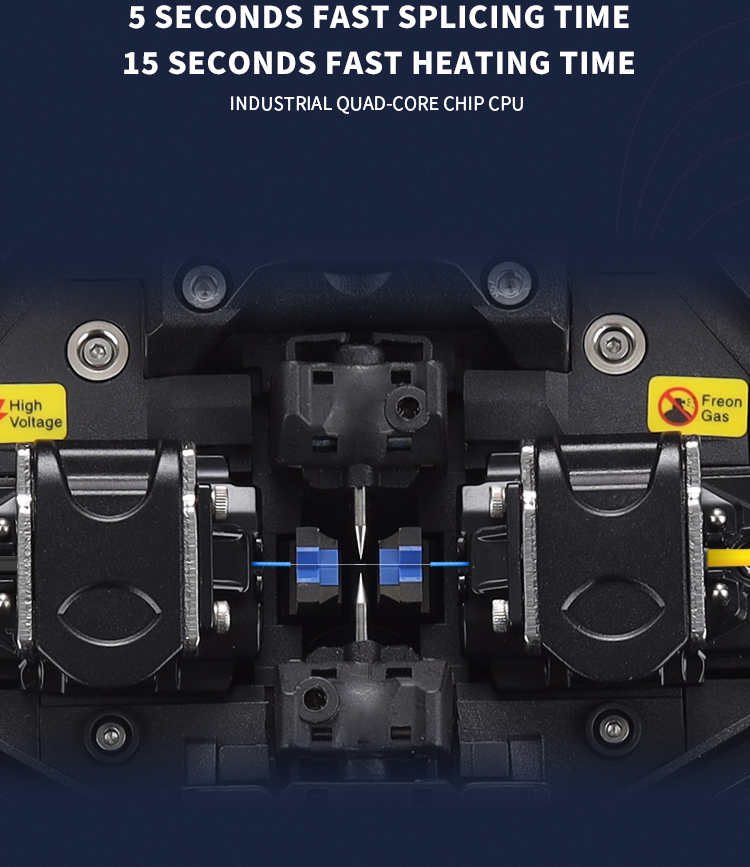

Splicing Time
|
Quick mode 6 seconds
|
|||
|
Estimated Splice Loss
|
Available
|
|||
|
Heating Sleeve Length
|
20 – 60 mm
|
|||
|
Heating Time
|
Quick heating time 13s, typical heating time 20s
|
|||
|

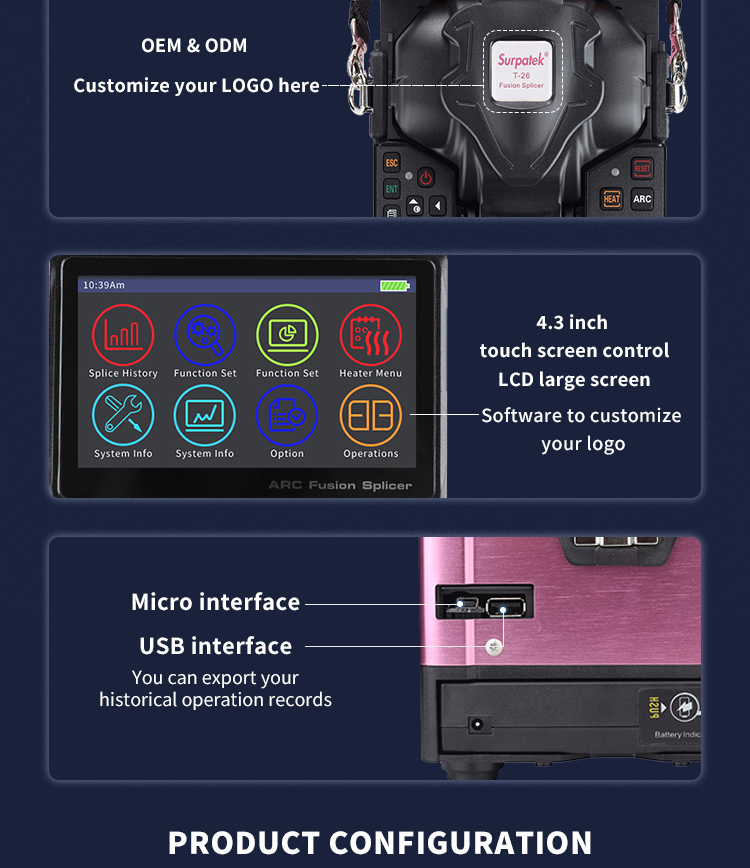

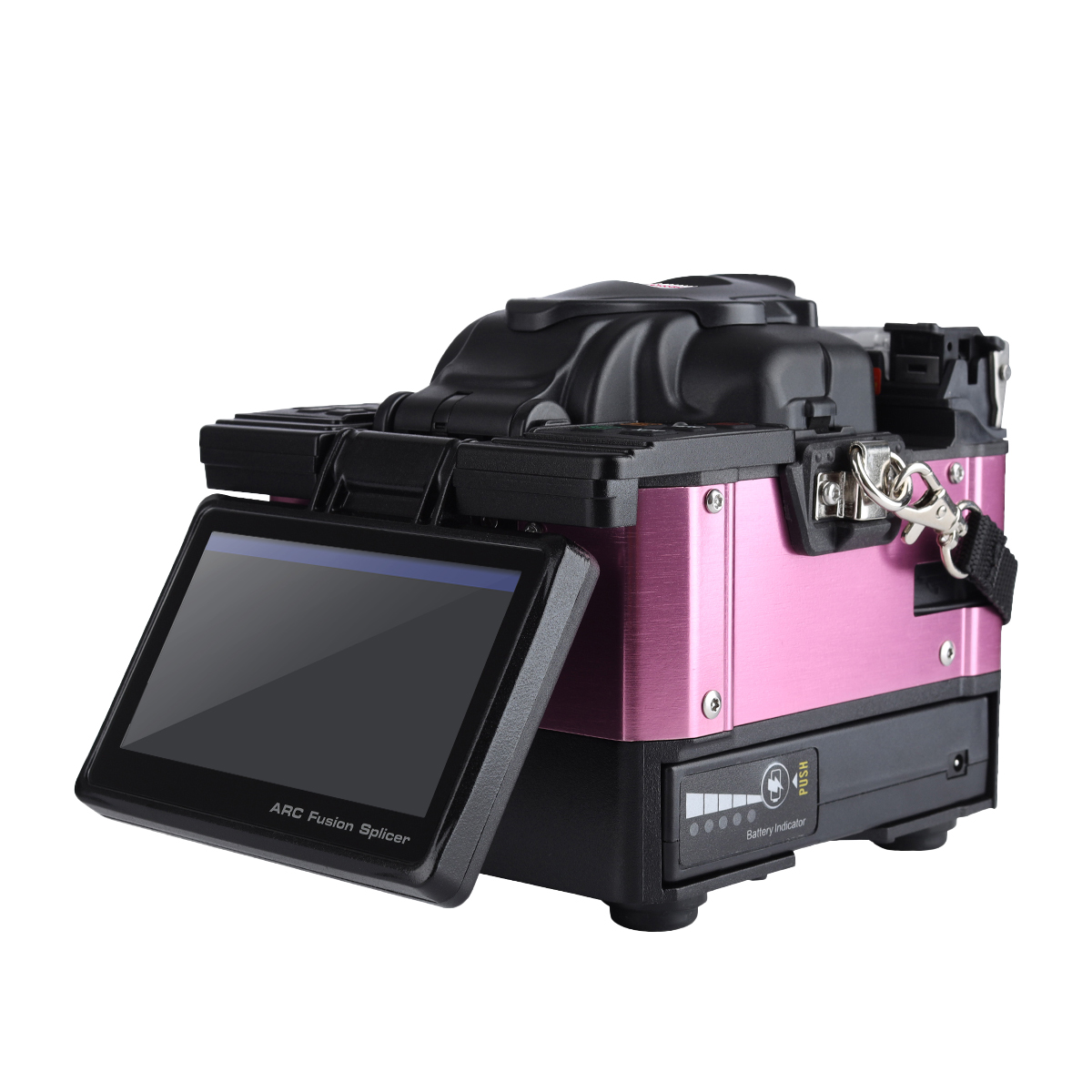

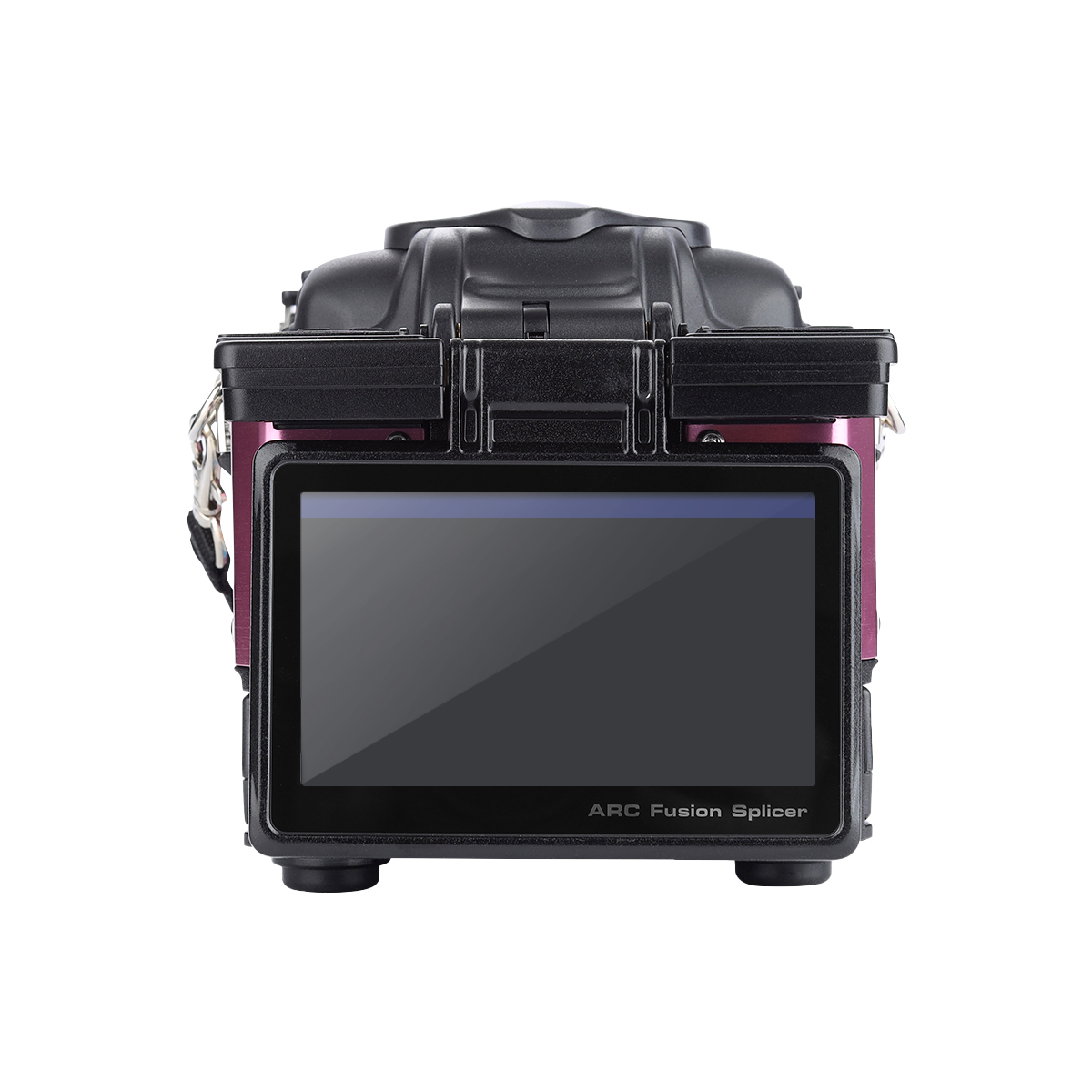

Viewing display
|
Dual high sensitivity camera, 4.3 inch Color Touch screen
|
|||
|
Results Storage
|
20000 latest records & 200 images
|
|||
|
Electrode Life
|
5000 arcs
|
|||
|
Tension test
|
1.96~2.25N
|
|||
|
Operating Condition
|
Operating Altitude:0 – 5000m above sea level, 0 – 95% relative humidity, -10 ~ 50°C,Max Wind 15m/s
|
|||
|
Storage Condition
|
0 ~ 95% relative humidity, -40 ~ 80°C
|
|||
|

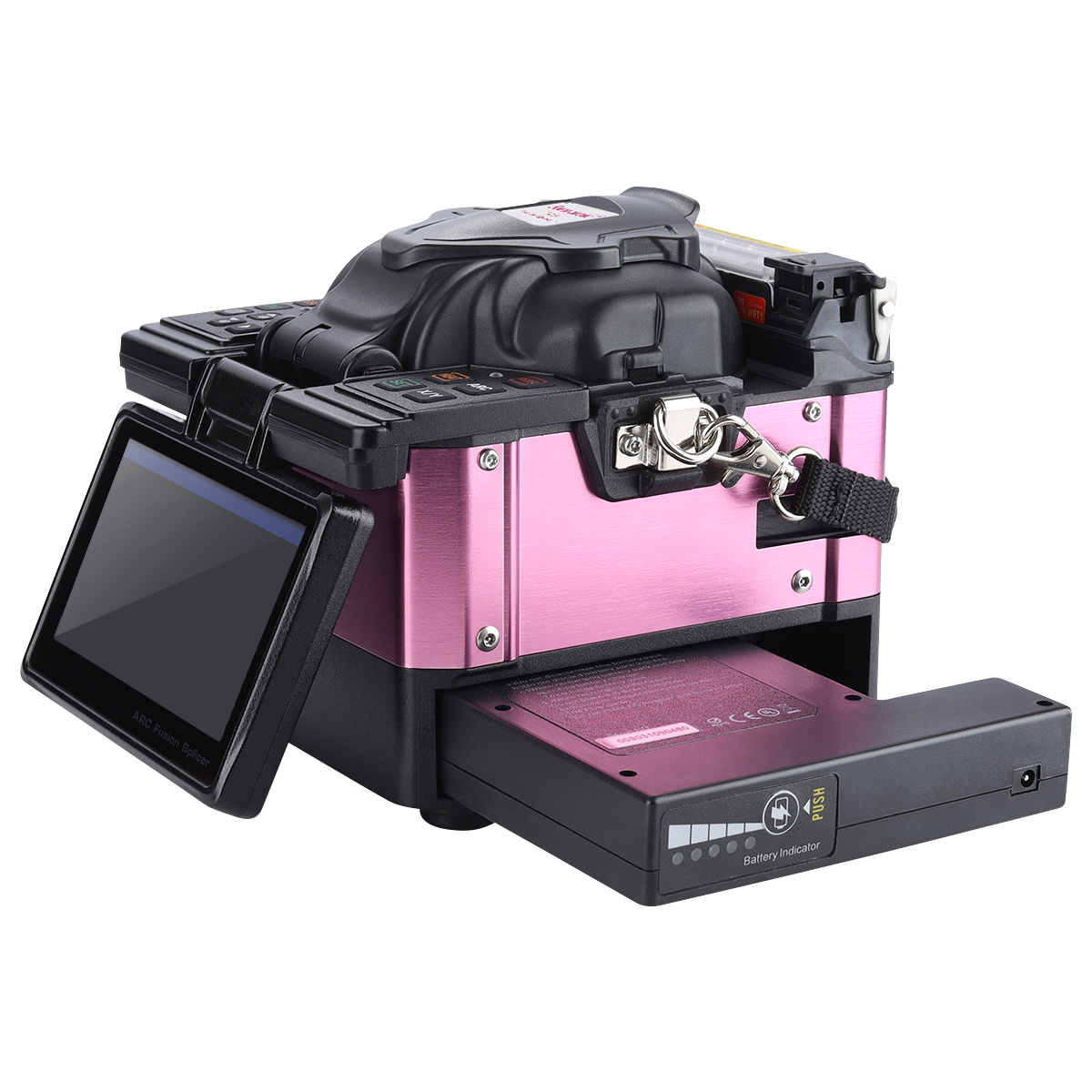

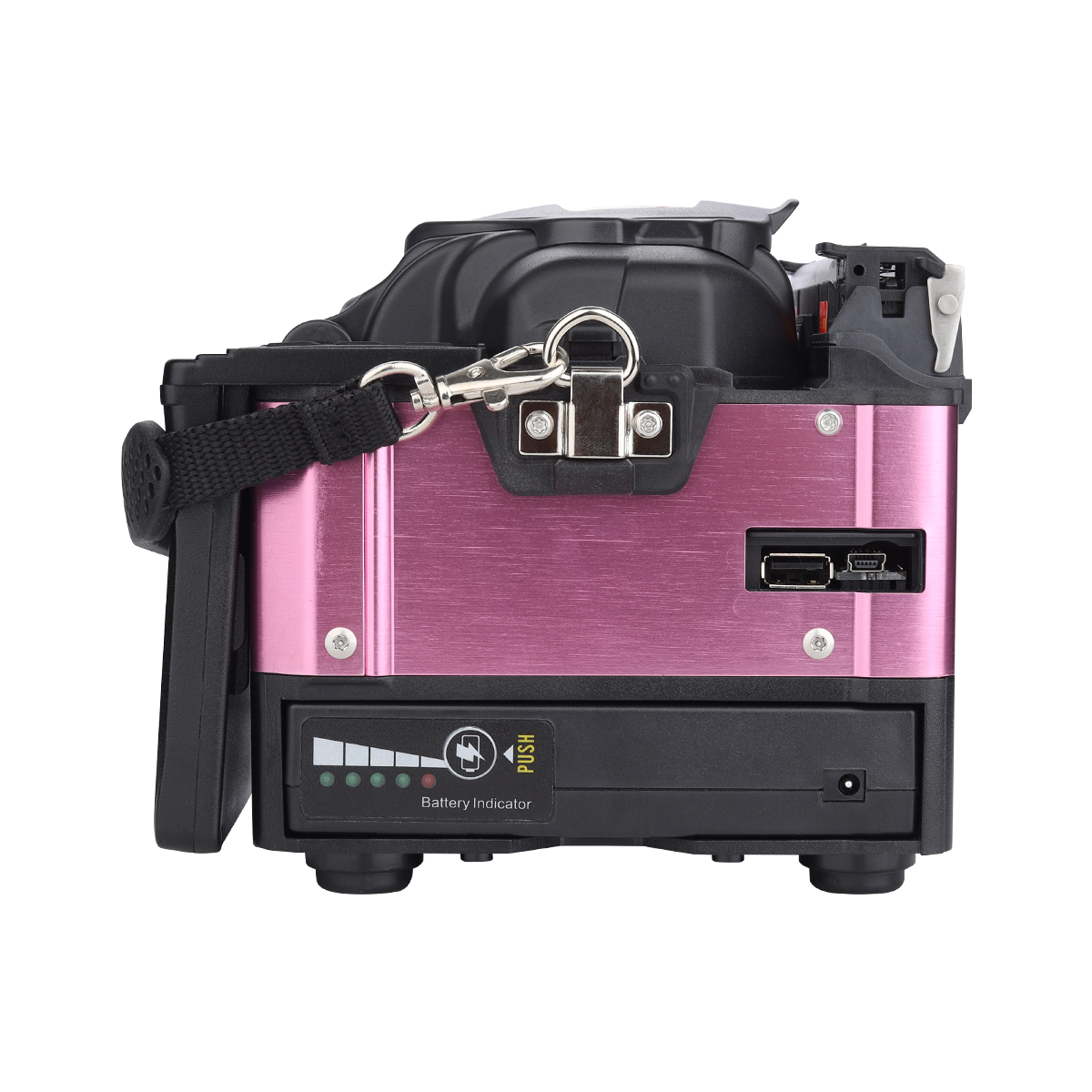

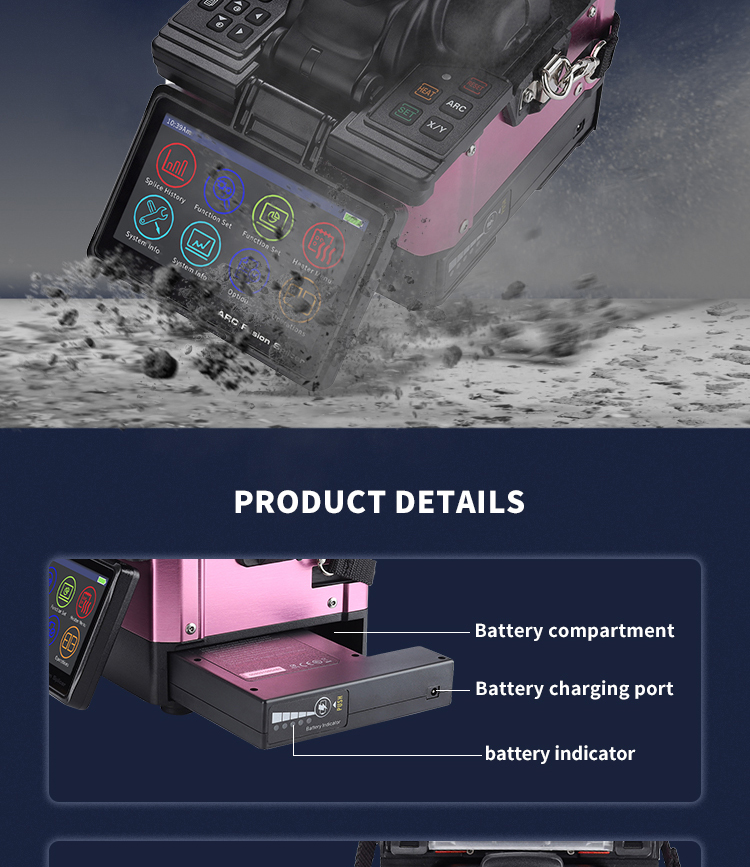

Power Supply
|
AC Input 100 – 240V, DC Input 12 – 15V
|
|||
|
No. of Splice/Heating with Battery
|
4000mAh Battery Capacity, Typical 180 times (Splice + Heat)
|
|||
|

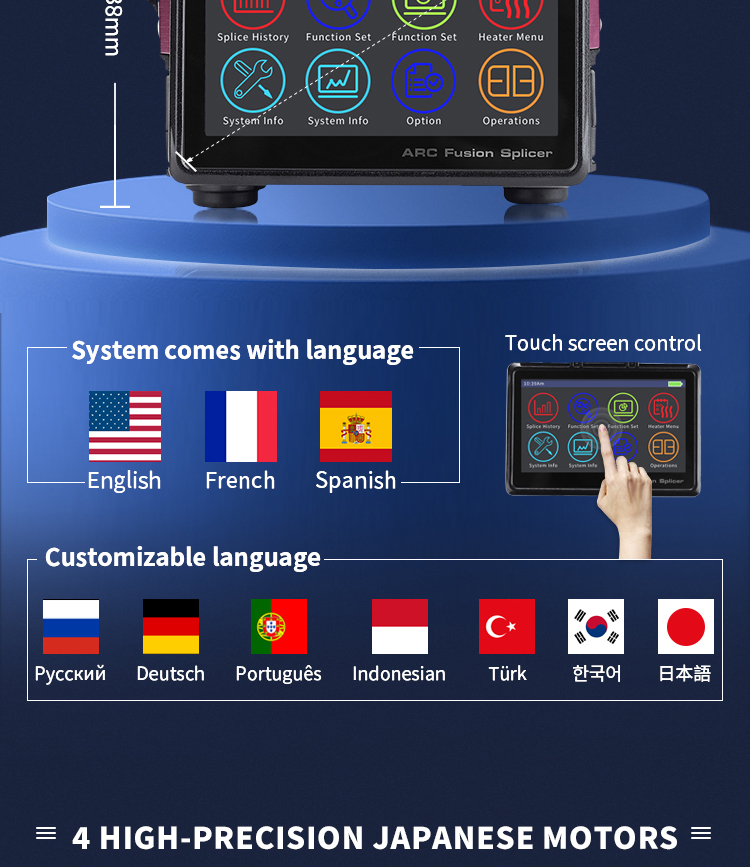

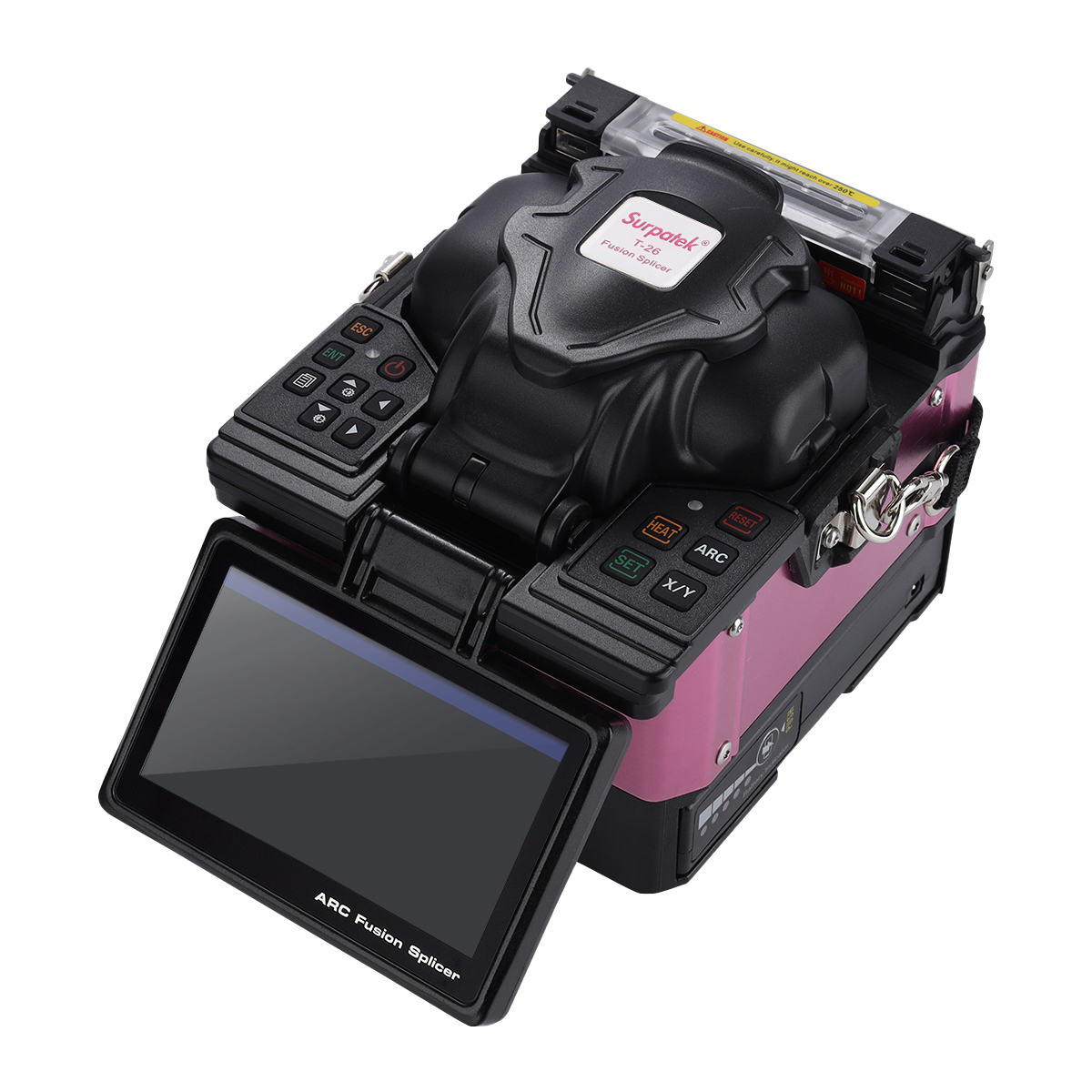

Operating Methods
|
Button / Touch Screen
|
|||
|
Automatic Calibration
|
Automatic arc calibration by air pressure and temperature
|
|||
|

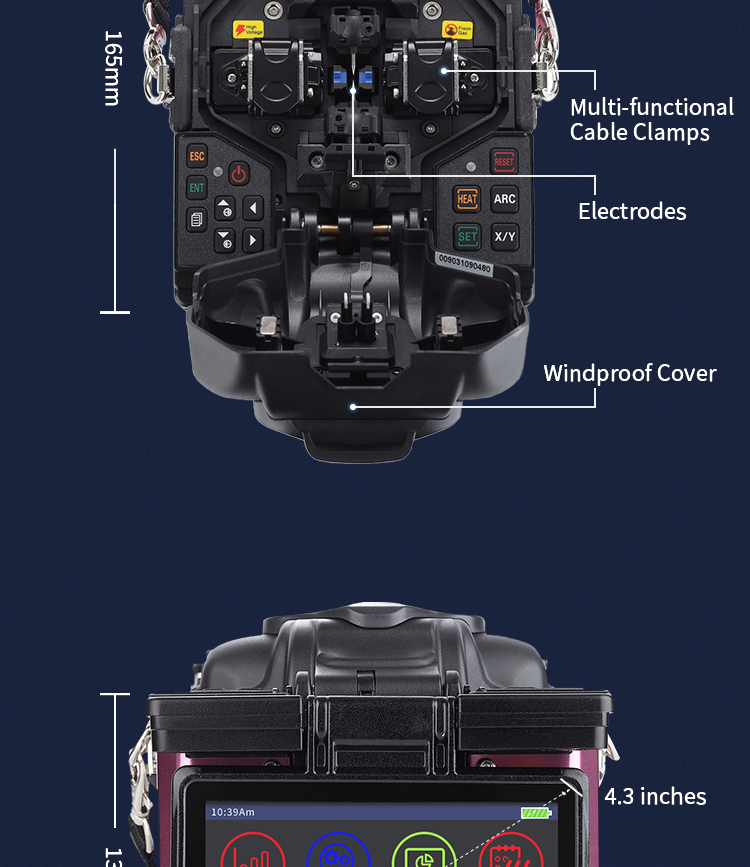

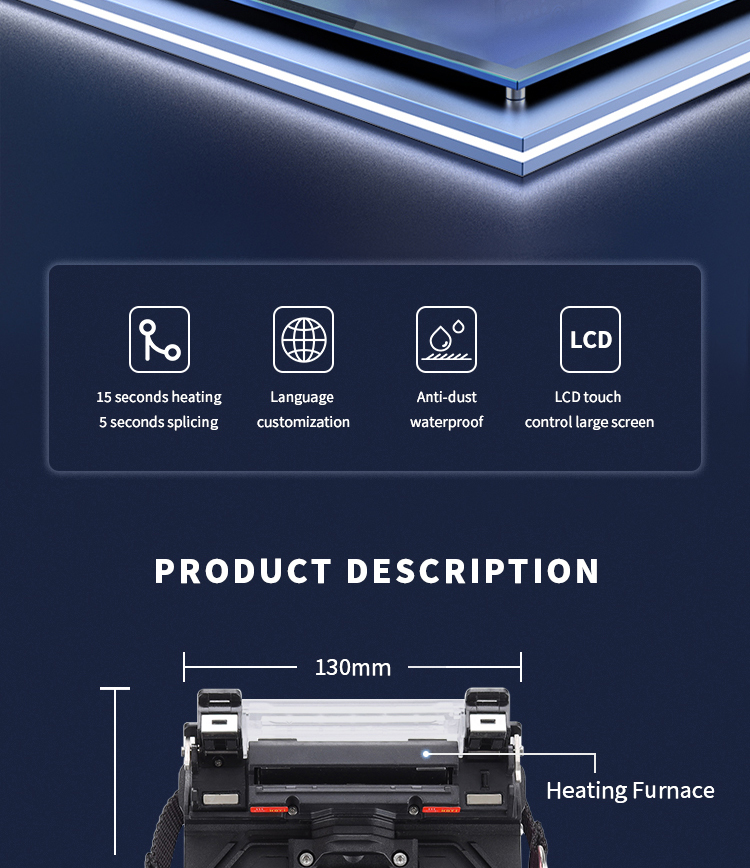

Dimension/Weight
|
130W*155L*125H (excluding rubber bumper)
|
|||
