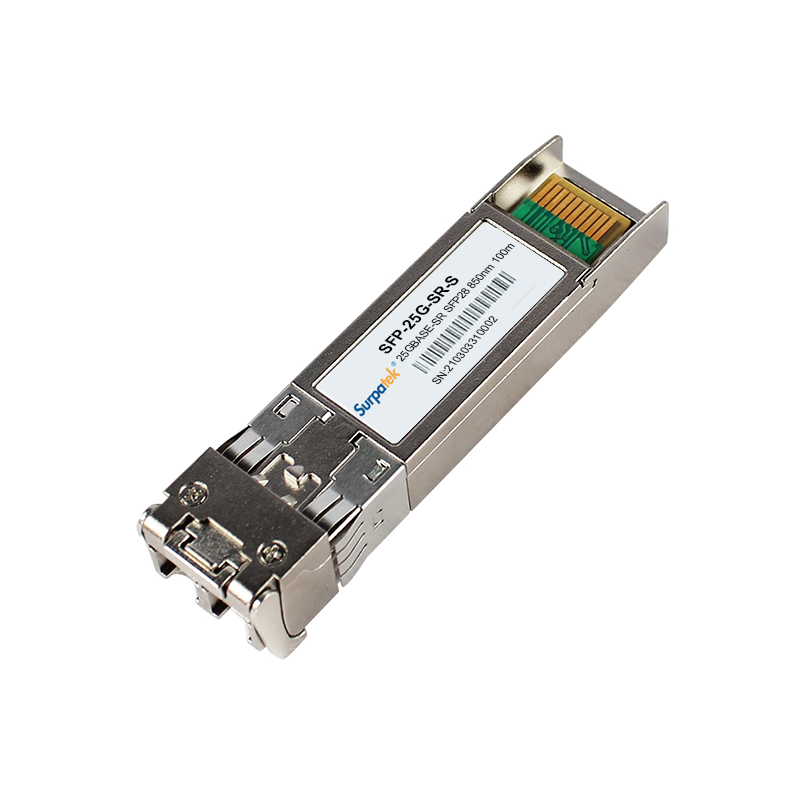

Cisco SFP-25G-SR-S Compatible 25GBASE-SR SFP28 Optical Transceiver Module for Data Center and Telecom (MMF, 850nm, 100m, LC, DOM)
Cisco Compatible | SFP-25G-SR-S | Vendor Name | SURPATEK |
Form Factor | SFP28 | Max Data Rate | 25.78Gbps |
Wavelength | 850nm | Max Cable Distance | 100m@OM4/70m@OM3 |
Connector | LC duplex | Media | MMF |
Transmitter Type | VCSEL | Receiver Type | PIN |
DDM/DOM | Supported | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
TX Power | -5~2.4dBm | Receiver Sensitivity | <-10.3dBm |
Powerbudget | 5.3dB | Receiver Overload | 2.4dBm |
Power Consumption | <1W | Extinction Ratio | >2dB |
Modulation Format | NRZ | CDR (Clock and Data Recovery) | TX & RX Built-in CDR |
Transmit and Dispersion Penalty | 3dB | FEC Function | Support RS-FEC, FC FEC |
Packaging Technology | COB (chip on board) Packaging | EMC (Electromagnetic Compatibility) | Supported |
Protocols | IEEE 802.3by, SFP28 MSA, SFF-8472, SFF-8432, CPRI, eCPRI | MTBF | 200,000 Hours |
Application | 25GBASE Ethernet, Data Center, Telecom, 100GE SR4 Fan Out to 25GE SR | Warranty | 5 Years |
