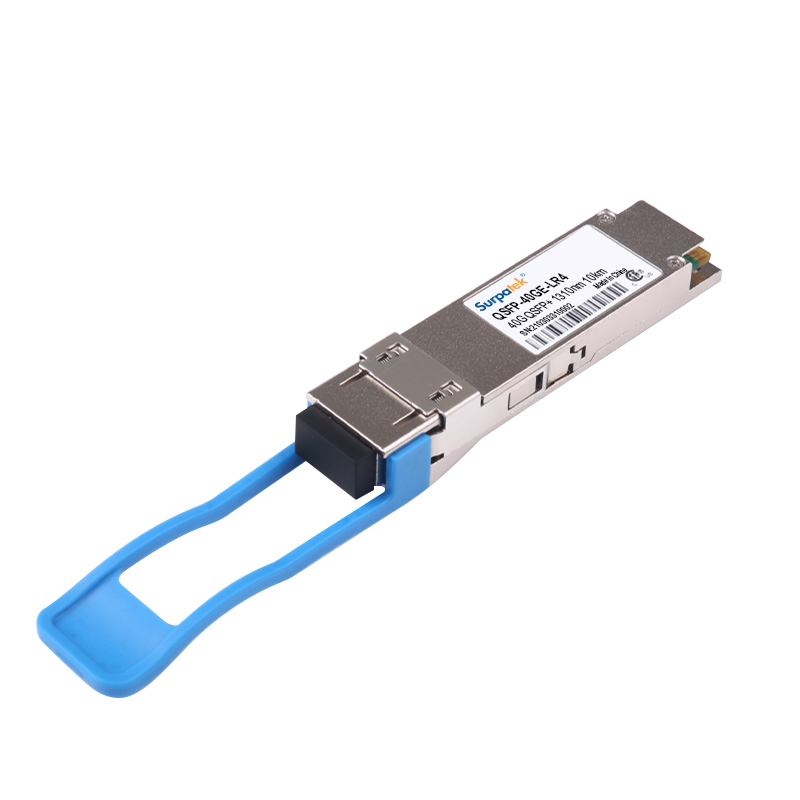

Cisco QSFP-40GE-LR4 Compatible 40GBASE-LR4 QSFP+ Optical Transceiver Module for Ethernet and Data Center (SMF, 1310nm, 10km, LC, DOM)
Product Specification:
Cisco Compatible | QSFP-40GE-LR4 | Vendor Name | SURPATEK |
Form Factor | QSFP+ | Max Data Rate | 44.6Gbps (4×11.2Gbps) |
Wavelength | 1310nm | Max Cable Distance | 10km |
Connector | LC Duplex | Cable Type | SMF |
Transimitter Type | DFB CWDM | Receiver Type | PIN |
DDM/DOM | Supported | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
TX Power | -7~2.3dBm | Receiver Sensitivity | <-11.5dBm |
Powerbudget | 4.5dB | Receiver Overload | 2.3dBm |
Power Consumption | <3.5W | Extinction Ratio | >4.5dB |
Transmit and Dispersion Penalty | 2.6dB | Modulation Format | NRZ |
Packaging Technology | BOX Packaging | Host FEC | Supported |
Bit Error Ratio (BER) | 1E-12 | Protocols | OTN OTU3, 40G Ethernet, Infiniband, FiberChannel, SATA/SAS3, MSA Compliant |
Application | 40GBASE Ethernet, OTN OTU3 C4S1-2D1, OTU3e1 and OTU3e2, Data Center | Warranty | 5 Years |
